The SC/KWT series is a climate-alternating chamber allowing for reproducible, accelerated corrosion testing in compliance with the requirements of DIN, ISO, ASTM, DEF, MIL-STD, etc. The wide-angle top loading test chamber hood helps with loading heavy, or bulky test specimens. Two sizes are available.
  • Corrosion resistant housing made from recyclable polyethylene
  • Acrylic glass nozzle in spraying duct for optimum spray fog distribution
  • Robust construction
  • Good thermal insulation; the choice of materials guarantees long service life
  • User-friendly variable positioning for test specimens
  • External heating of test chamber using safe 42 volt system
  • Test specimens may also be lifted into the test chamber by crane thanks to the lightweight test chamber hood which opens to 75°
  • Hydrostatic hood seal
  • Ergonomic arrangement of the operating panel and display instruments
  • Operation, program and set value selection via color touch panel
  • Digital displays of set and actual values
  • Digital fill level display on the operating panel
  • Long-term tests are no problem thanks to the 180 liter capacity brine reservoir
  • Easily filled with brine through a front-mounted, 125 mm O filler opening
  • Ready-to-plug in, modular construction. Hence no need for assembly or commissioning on site
  • Test chamber design provides ease of service, all parts are easily accessible through the light-weight, removable machine compartment hood.

Application

  • Salt Fog Test DIN EN ISO 9227 - DIN 50 021
  • Condensed Water Test DIN EN ISO 6270-2 - DIN 50 017 and EN ISO 6988 - DIN 50 018
  • Standard Climate DIN 50 014, clause 5 ambient temperature

Standard Version

  • Digital measuring and control system Simpac*
  • Ergonomically arranged 8” TFT color touch panel
  • Ethernet interface (100/10 megabits) for integration into network
  • USB interface for direct documentation of measuring data via USB stick (USB stick not included)
  • High-precision, two-fluid nozzle in spray duct
  • Compressed air control unit
  • Heated compressed air humidifier with water level control
  • Flow metering and dosing device for brine
  • Brine reservoir, 180 l
  • Test specimen bracket
  • Corrosion-resistant, stable support rods to hold the test specimen at bench height

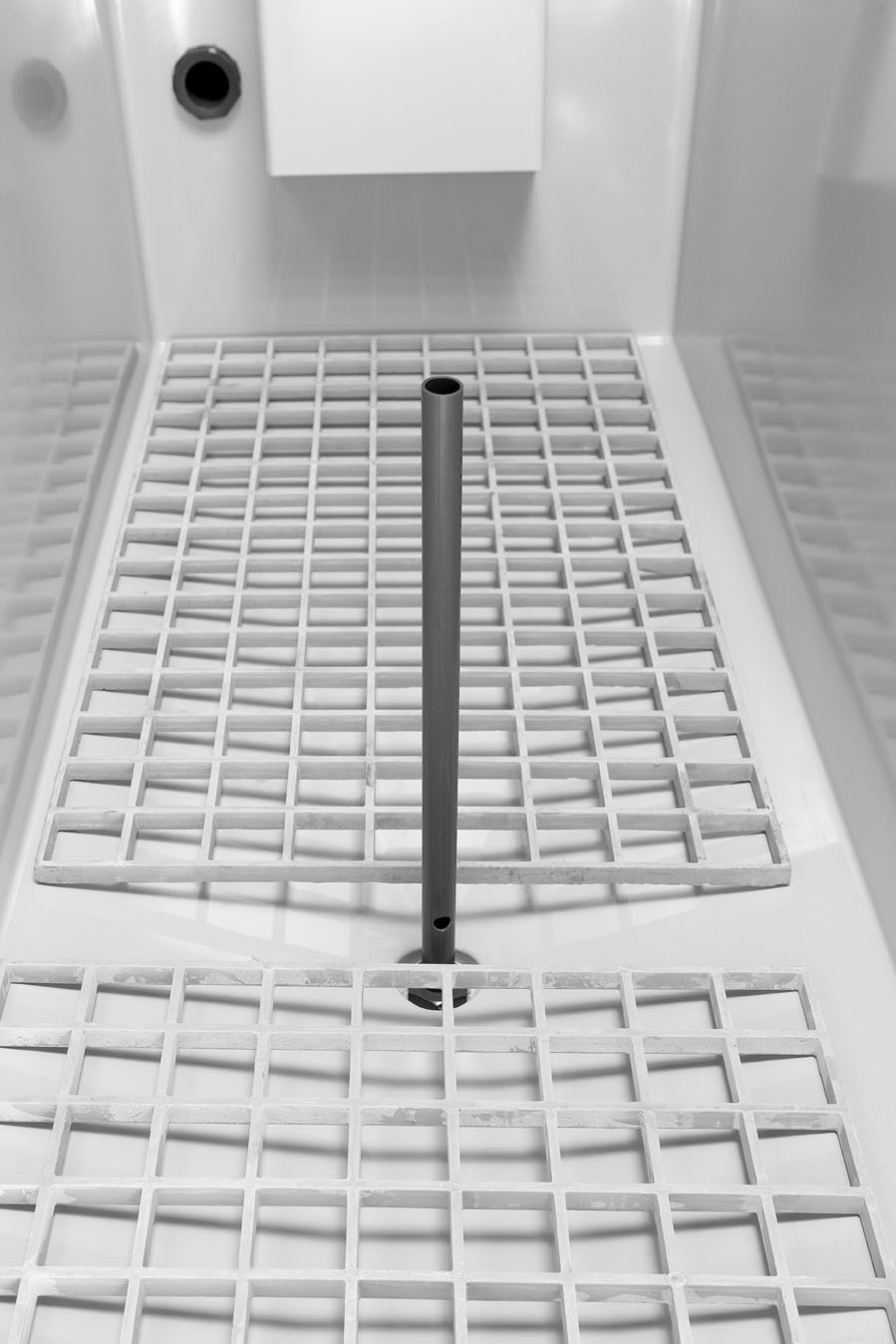

  • Floor grid
  • Extended depth “U” profile groove on right-hand side for measuring and supply lines
  • Calibration in salt spray test (+35 °C test space temperature/+49 °C humidifier temperature)
  • Calibration in condensed water test (+40 °C test space temperature).
  • Ventilation device complying with DIN 50 014, clause 5 ambient temperature
  • Automatic water reservoir for DIN EN ISO 6270-2 [DIN 50 017 KFW] / EN ISO 6988 [DIN 50 018]
  • Test chamber floor drain with diaphragm valve for DIN EN ISO 6270-2 [DIN 50 017 KFW] / EN ISO 6988 [DIN 50 018].

Options

  • Ventilation device for DIN 50 014, clause 5 ambient temperature
  • Demineralization cartridge
  • Air compressor
  • Precipitation collector
  • Precipitation measurement and display
  • Measuring cable ports, each 50 mm or 100 mm Ø, free choice of location on left, front or rear wall of the test chamber
  • Triangular window (only SC/KWT 450)
  • SO2 gas dosing device for EN ISO 6988 [DIN 50 018] manual operation, (automatic operation only possible in combination with SC/KWT equipment)
  • Hood locking, safety lock switch prevents opening of hood, e. g. in case of SO2 atmosphere
  • Additional brine reservoir, 500 l
  • Interface RS 422/485 network card
  • Simpati* software package for Windows
  • Air conditioning unit
  • Brine mixing with circulation pump 200 l or 500 l
  • Other sizes, e. g. 2,000 l, or customized accessories are available upon request

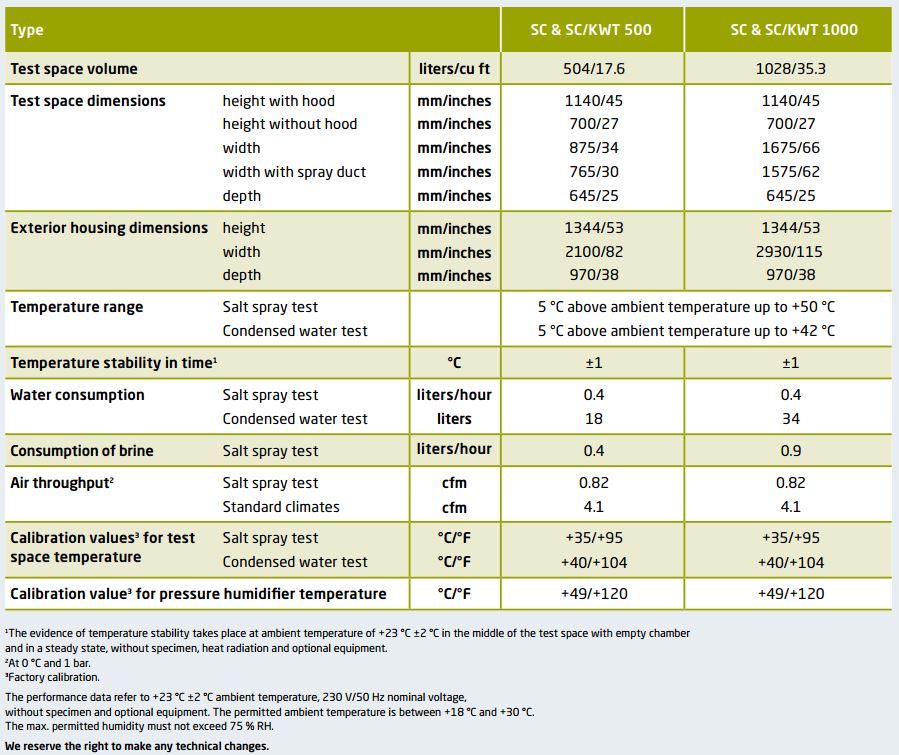

sc_kwt-and-sc_ukwt-spec-sheet
