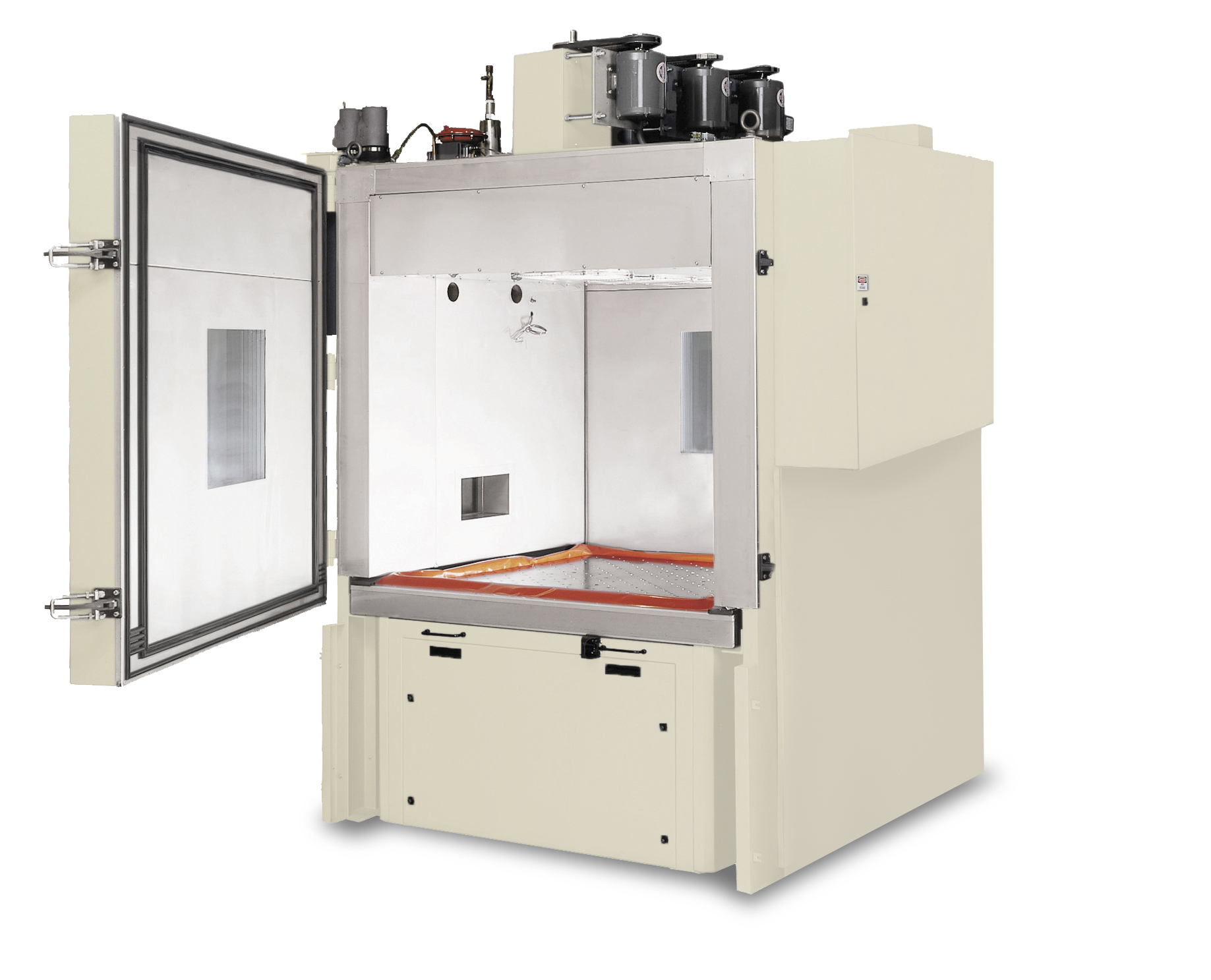

The STAR Plus(tm) System adds the dimensions of ease of use, consistency of performance, and total system reliability to your product development and/or production program. The Technik Star Plus System AGREE chambers are equipped with an LN2 cooling system. The LN2 cooling system, with modulating valve and directed airflow to the product, provides the rapid thermal change rates required to achieve maximum product stress. Additionally, these rates are accomplished with smaller space requirements, lower audible noise, no water requirement, and lower maintenance costs than a typical refrigeration system. The chamber enclosure is insulated with sound dampening material to keep operating noise levels of the vibration equipment below 78dBa. Access to the chamber workspace is through large total-access doors.
  • Custom sizes available consult with your local salesperson
  • Many options available - contact your local salesperson for complete list
  • LN2 cooling system with modulating valve provides rapid thermal change rate (70˚ C/min) for maximum product stress (*specifications for export models may vary)
  • Three-blower-wheel air circulation system provides enhanced airflow to the product for uniform temperature and greater consistency in testing
  • Stainless steel jack shafts withstand corrosive nature of the environment for a longer life
  • Nichrome wire heating elements with fail-safe fusible link eliminates the possibility of a "runaway" chamber
  • Solid-state heat switching eliminated the problem of worn out mechanical relay contactors
  • Stainless steel interior continuously heliarc welded to eliminate liner seam leakage for a longer lasting chamber
  • Chamber designed to keep the sound level of temperature/vibration testing below 78 dBa for a quiet, less disruptive performance in your lab or test area
  • Large, total-access doors make the full width and height of the workspace accessible
  • Available in table sizes 44" x 44", 36" x 36" and 28" x 28"
  • Touch screen commands
  • Independent Fuzzy Logic Parameters
  • Data Input Via Pop-up Displays
  • Set Point Versus Process Variable Displays
  • 12 Event/Auxiliary Outputs
  • Selectable Inputs, T/C, RTD, Voltage, Current
  • Selectable Restart Modes After Power Failure
  • Quick Draw for Optimized Performance
  • Complete Diagnostics
  • Battery Backup
  • Optional Data Logging Capabilities up to 10 Channels

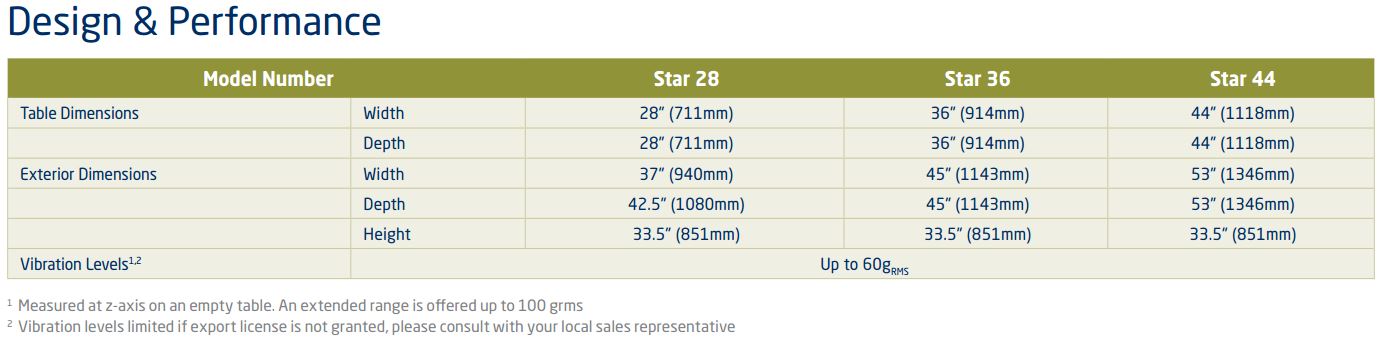

star-spec-sheet
