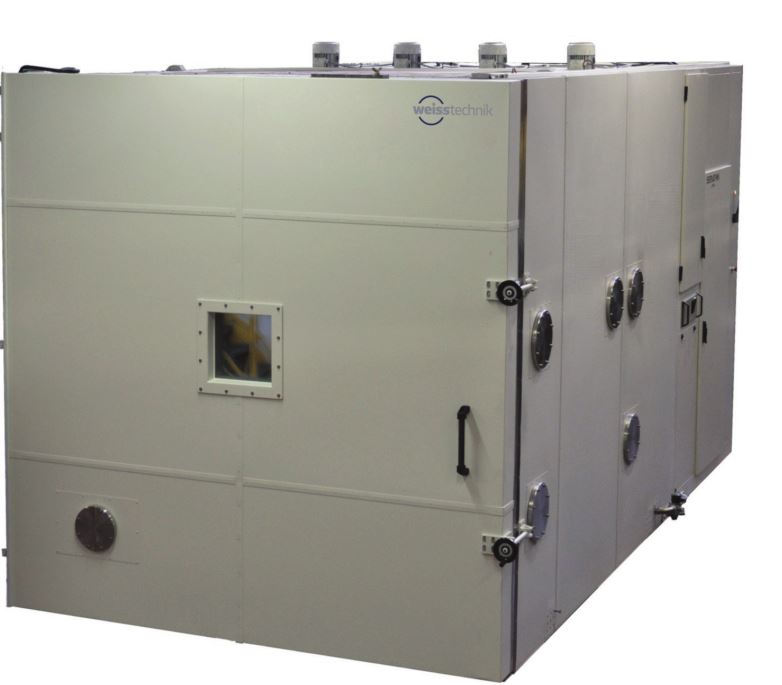

TAH – Temperature Altitude Humidity Chamber 15m3

Climatic chamber 15m3 (530 ft3) Hot Cold Vacuum  Humidity

-60°C / +150°C

10 mbar



Industries

Electronics, defense and aeronautics

Application

Climatic and altitude tests on electronic equipment for aeronautic industry

Description of the equipment

Unit composed of  :
  • The test chamber with its conditioning unit at the back
  • The machinery on the rear side with its electrical cabinet
  • The command panel on the side
  • SPIRALE Vs control and supervision software

Technical Data

Performances are given for :
  • A load of 500 kg (aluminium, epoxy and composite materials)
  • A dissipation of 1500 W (incl. temperature set point variation)
  Temperature
  • From atmospheric pressure to 200 mbar (approx. altitude 38.5 kft)
  • Range : From -60°C to +150°C
  • Cooling rate 5°C/mn average from +85°C to –40°C 3°C/mn average from +100°C to –60°C
  • Heating rate : 5°C/mn average from –40°C to +85°C 3°C/mn average from –60°C to +100°C
  Humidity
  • At atmospheric pressure (site level):
  • Range of temperature : From +20°C to +60°C Range of humidity : 20 to 95 % without dissipation Stability of humidity : ≤ ± 5 %  RH
  • Homogeneity : ± 5 % RH at 20 cm of the   walls
Vacuum
  • Range : From AP to 10 mbar, regulated down to 50 mbar
  • Speed of variation : From AP to 100 mbar in 20 min, in a dry chamber
  • Regulating accuracy : ± 1 mbar

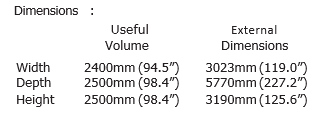

  Climatic chamber Hot Cold Vacuum  Humidity Dimensions Climatic chamber 15m3 (530 ft3) Hot Cold Vacuum  Humidity
