TS-60

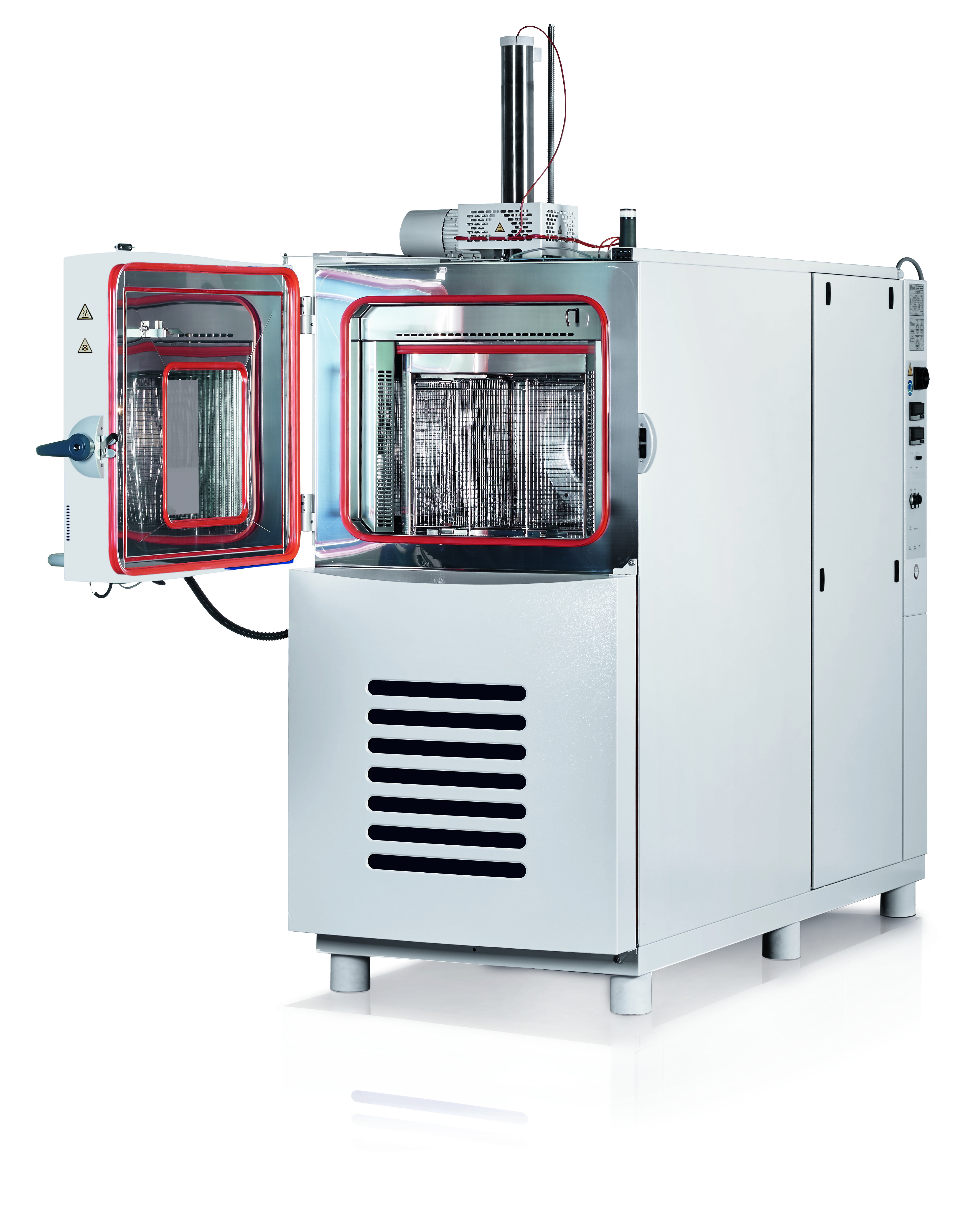

The TS-60 test chamber is made of two independently controlled chambers. One chamber is hot and the other one is cold. The temperature shock between hot and cold is created with the rapid transfer of the specimens on the lift and the subsequent exposure to a wide range of temperatures.




Application

Environmental conditions have a considerable effect on the function and the reliability of electronic components, devices and systems. The main purpose of temperature shock tests is to determine, if sudden temperature changes have an influence on the specimen’s long term function. In addition, early failures due to part and workmanship defects can be provoked without reaching the mechanical and thermal stress limits of the construction. This test process, the ESS stimulation (ESS = Environmental Stress Screening), is applied to discover such defects in early production stages. The life expectancy of the test specimens can be forecast after a test carried out with a few hundred, or even a few thousand, temperature cycles.

The reliability and functionality of electronic components, devices, and systems is heavily influenced by environmental conditions. In order to determine whether sudden temperature change may have an impact on the specimen’s long-term functionality. These types of tests help to identify part and workmanship defects in construction without reaching the thermal and mechanical stress limits. Through using ESS (Environmental Stress Screening) such defects can be recognized early on in the production stages. An accurate prediction of the products life expectancy can be made after a few hundred, or few a thousand, temperature cycle tests have been completed.

  • Test space 60 liters
  • Vertical order of the chamber for safe and quick test performance
  • Regular temperature distribution in test space via a high recirculating rate with optimum air flow
  • Hot chamber temperatures of +50 °C to +220 °C
  • Cold chamber temperatures of –80 °C to +70 °C
  • Alternating time between the chambers <10 sec.
  • More than 1,000 cycles are possible without defrosting via a standard integrated volume compensation system for continuously operation
  • Low sound-pressure level, only 58 dB(A)
  • Operator friendly design enhances maintenance of the machine components
  • Entry port Ø 80 mm
  • Loading capacity of the lift 20 kg
  • 8" TFT-color touch screen display
  • Control panel
  • Ready to plug-in
  • Window in hot zone
  • Ultra-lightweight shelf includes rails
  • Lift in loading position locked
  • Entry port Ø 80 mm
  • Volume compensation system for long-term operation
  • Air-cooled refrigeration unit
  • Hermetically sealed CFC-free refrigeration circuits
  • 8" TFT-color touch screen display
  • CONTROLPAD* for indication of actual values
  • 32 bit control and monitoring system S!MPAC*
  • Software S!MCONTROL* for comfortable operation
  • Interfaces RS 232/USB/Ethernet
  • Digital I/O, potential-free, 24 V, 4 freely available inputs/outputs
  • Independent adjustable temperature limiter (tmin/tmax ) for hot and cold zone
  • Potential-free contact for switching-off of test specimens
  • Adjustable software temperature limiter min/max
  • Hours of operation counter.
  • Temperature control via sensor in cradle or in hot or cold zone
  • Defrosting cycles: automatic and programmable
  • Delayed start option
  • Standards are pre-programmed and recallable
  • Mobile version
  • Calibration of two temperature values
  • Powder-coated housing made of galvanized steel sheet
  • Test space, lift and insert shelves (insert baskets) made of corrosion resistant stainless steel
  • Analogue transducer l/O
  • Temp. measuring on test specimen
  • Temp. range extension to +250 °C
  • Wire mesh and insert shelves
  • Additional entry port Ø 80 mm
  • Connection for GN2
  • Shock cooling with LN2
  • Water-cooled refrigeration unit
  • Special voltages
  • WKD or DKD calibrations
  • Interface RS 232 <--> lEEE 488
  • Interface RS 422/485 (network card for test cabinet)
  • Software Simpati* for network operation
