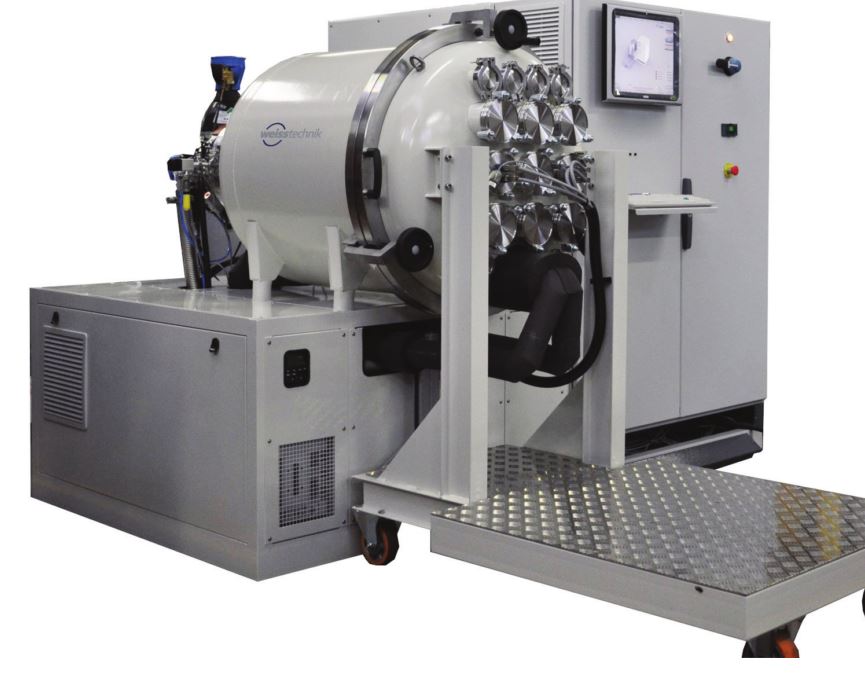

TVC – Space Simulator 240L
TVC – Space Simulator 240L

TVC – Space Simulator 240L

Vacuum chamber 240L 1.10-6 mbar

-65°C / +165°C



Industries

Space and electronics

Application

Testing and performance measurements electronic components for the space industry

Description

Unit composed of :
  • A vacuum tank equipped with feedthroughs
  • A machinery equipped with coolant system and vacuum system
  • An electrical cabinet with power front-panel controls
  • Door on mobile trolley for devices support
  • A thermal plate and a thermal shroud
  • Supervision and control using SPIRALE Vs and command by touch screen

Technical Data

Performances are given for :
  • An ambient temperature between +15°C and +25°C
  • Dissipation 100 W
  Temperature
  • Temperature range : -65°C to +165°C
  • Cooling rate (average) : 2°C/min from +125°C to –55°C, empty 1°C/min from +165°C to –65°C, empty
  • Heating rate (average) : 2°C/min from –55°C to +125°C, empty 1°C/min from –65°C to +165°C, empty
  • Temperature stability : ± 1°C
  • Temperature homogeneity on the thermal plate : ± 1°C
  Vacuum
  • Vacuum range : from AP to 1.10-6 mbar
  • Pressure variation speed : from AP to 10-5 mbar in 30mm (without charge and without the specimen), at ambient temperature

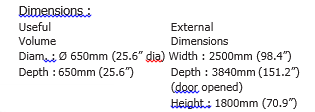

Space Simulator Dimensions   Space Simulator 240L
