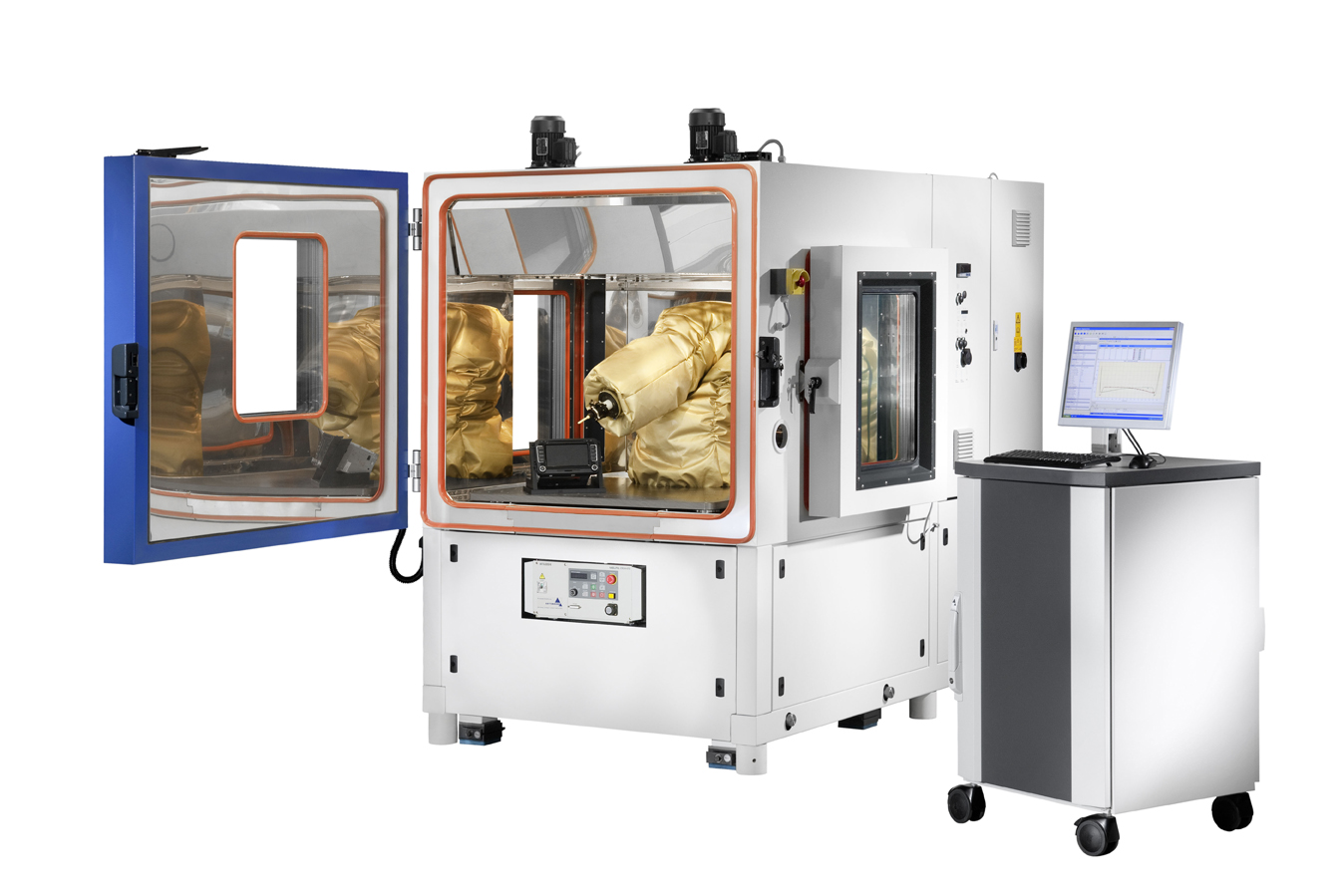

The WK BM 1000 represents the first complete solution in the form of a combined measuring robotic and climate test chamber - for function dependent component tests under extreme climatic conditions (-40°C to +85°C) and with rapid temperature changes in testing and production.

Application

Measuring, testing and moving products in the climate chamber in the temperature range from -40 °C to +85 °C

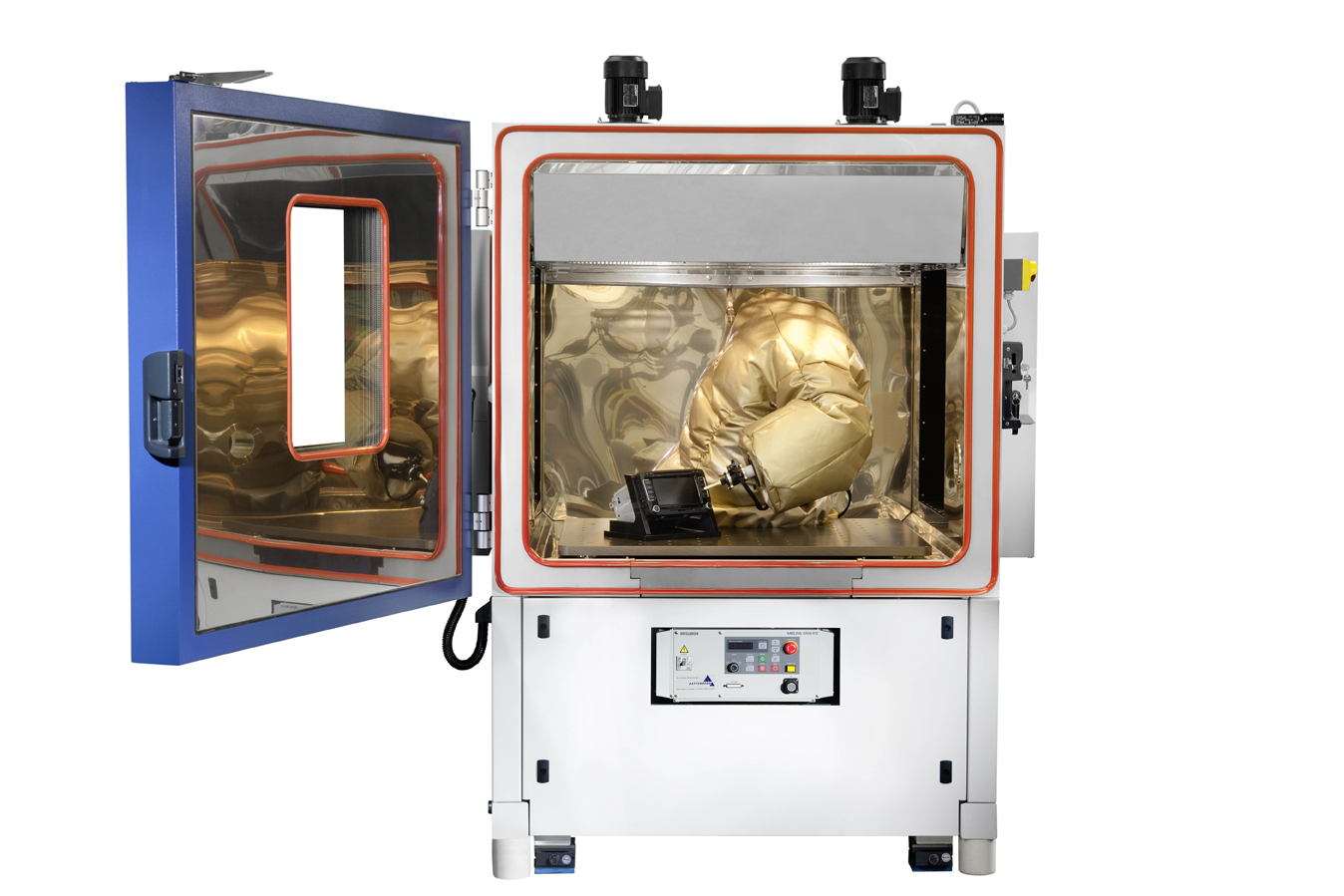

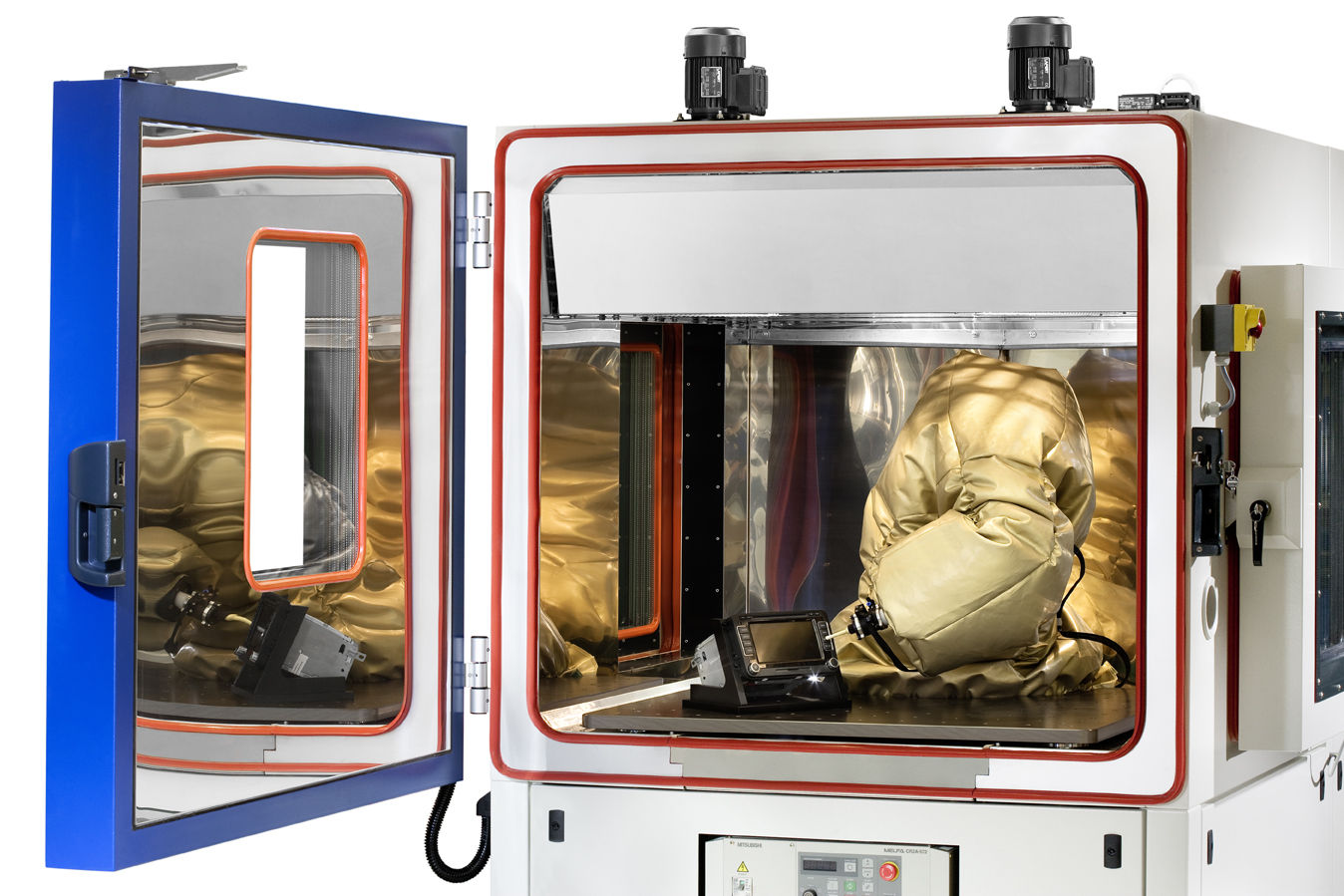

  • With the „Road to Lab“ process, realistic environmental conditions in the laboratory are simulated, to determine the influence of environmental impact that a product is exposed to. This is applicable in the sectors of automotive and supply industry, medical engineering, IT and household device industry. The outstanding test possibilities provided by the robotic measuring systems in the field of quality control are continued in the climate chamber with the WK BM 1000. The robot in the climate chamber is protected by an air-conditioned protective cover.
Reliability and quality tests under extreme ambient temperatures
  • The functional reliability and quality of vehicle components or other operating components are tested in the climate chamber. With the aid of an air-conditioned robots, vehicle or operating components can be simultaneously moved and location-dependent functions can be flexibly, precisely and efficiently measured. All measured values are recorded for subsequent analyses, and hysteresis curves can be documented.
  • Measuring robotic for component tests in the climate chamber in the temperature range from -40°C to +85°C
  • Monitoring of temperature and air flow
  • The integrated measuring platform enables fast assembly of the test components
  • The manual, haptic programming of robot paths and measuring points is optionally possible via the force and torque sensor
  • Monitoring and control functions for the climate chamber can be optionally integrated e.g. webcam
