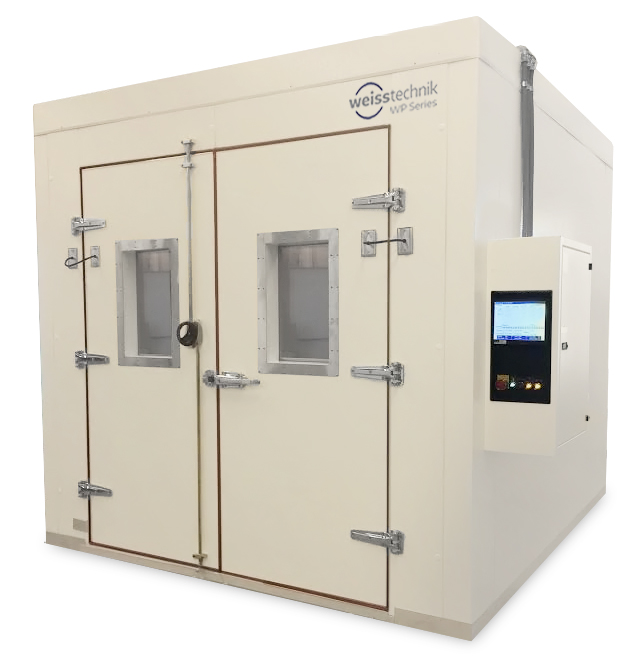

The pre-fabricated Walk-In/Drive-In test chamber's modular construction facilitates ease of move-in and setup. The WP Series accepts all sizes of roll-up conditioning modules. WP Series is suited for many Telcordia (Bellcore) applications. The WP Series has temperatures up to 150 C (302 F) available providing greater testing options.
  • Nominal 4-inch (102mm), rigid urethane insulation
  • (thicker panels are optional)
  • Multiple Plenum Options for Greater Flexibility
  • Interior lighting provided in vapor-proof fixture with external control switch (specialty lighting systems available)
  • Moisture-Vapor Seal: all joints between panel sections fitted with double gaskets
  • Flush-type door with thermostatically controlled perimeter gasket, heated to remain dry and frost free; standard
  • Clear opening 34-inches (864mm) wide and 78-inches
  • Door hardware includes cam lift, self-closing, chrome plated hinges and a lockable chrome-plated door latch with inside safety release
  • Floor loading of up to 1,200 pounds per square foot. (6,000 pounds available as option)
  • Point loading conditions
  • Optional heavy duty floors sloped to perimeter drains
  • (Recommended for WPH Humidity chambers)WP Series chart_3.21.16
  • Dual air circulation through blowers with solid stainless steel jackshafts
  • Water-cooled cascade refrigeration system
  • Nichrome wire heating elements with fail safe fusible link
  • Solid state heat switching
  • Drive in options available
  • Compatible with four post simulators or dynamometer
  • Solar simulation packages
  • HC/CO monitoring of vehicle under test
  • Complete customized operator interface software packages
  • Complete installation packages
  • Custom sizes available consult with your local salesperson
  • Many options available - contact your local salesperson for complete list
