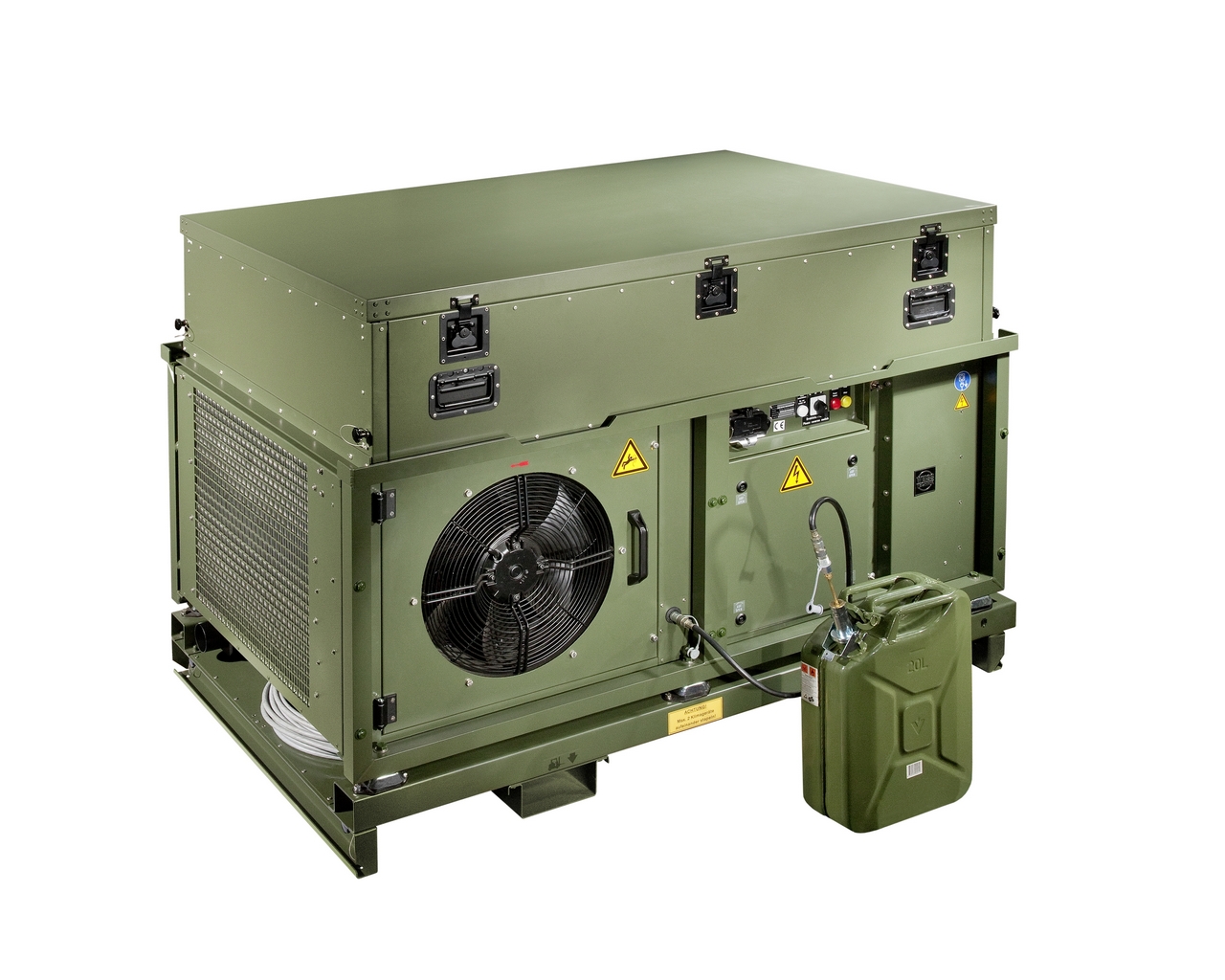

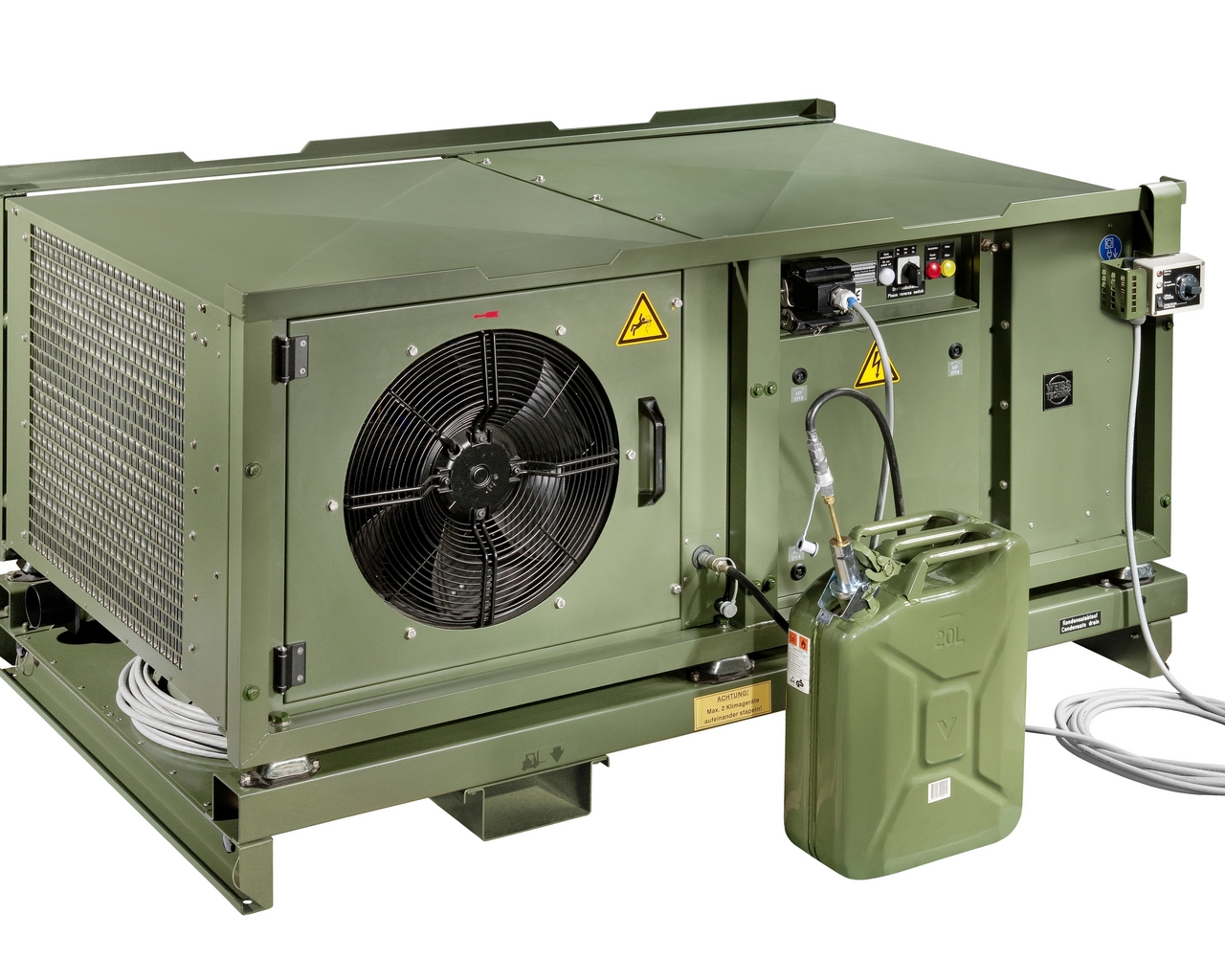

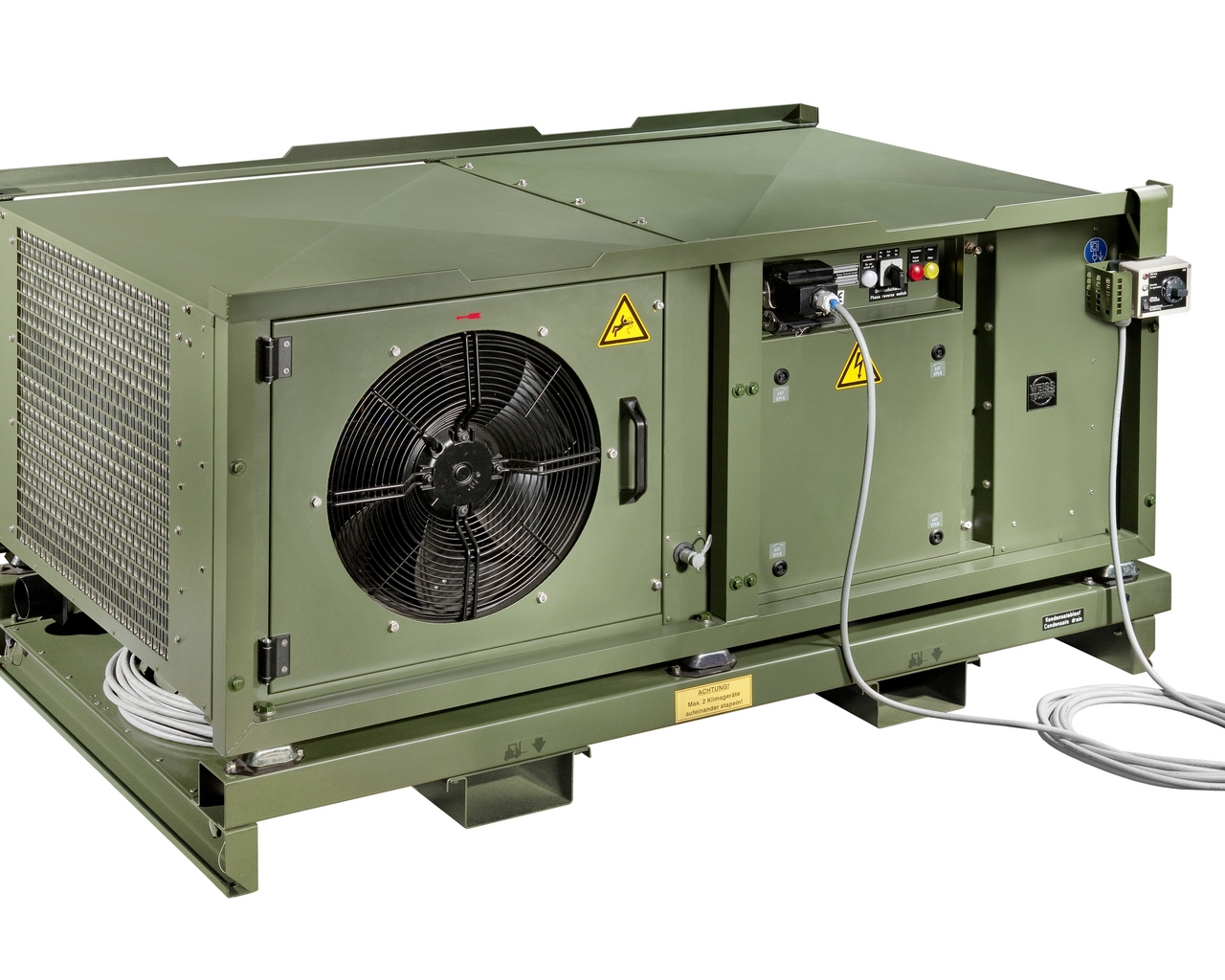

The Weiss ZKB 20/18 and the ZKB 20/18-B series are mobile air conditioning systems that have been specifically designed for mobile cleanrooms, command posts, and medical/rescue tents. These systems will operate reliably even at temperatures reaching up to +60° C with a cooling capacity up to 18 kW. The ZKB 20/18 comes standard with a patented fuel-powered heating capacity of up to 30 kW. Even with an outside temperature of -32°C tents can be comfortable for those inside. The heat-carrying medium is used to transfer heat into the tent where it is then supplied into the ventilation system. This indirect heating system prevents emissions from entering the tent space.
  • Vibration and shock-resistant tested unit under VG 95332, severity level 5
  • Modular installation for easily replacing components
  • Casing and frame made from aluminum, thus reducing weight
  • Compact design with transport frame
  • Operation as a fresh air or a recirculating air system possible
  • Electric heater optional with fuel heater available
  • Water/glycol mixture provides fuel-powered indirect heating, CO monitoring not required
  • Design closed from above, therefore no rain, snow and pollution contamination
  • Reliable operation at external temperatures of up to +60°C

Supply scope

  • Basic unit
  • Air supply hose, insulated

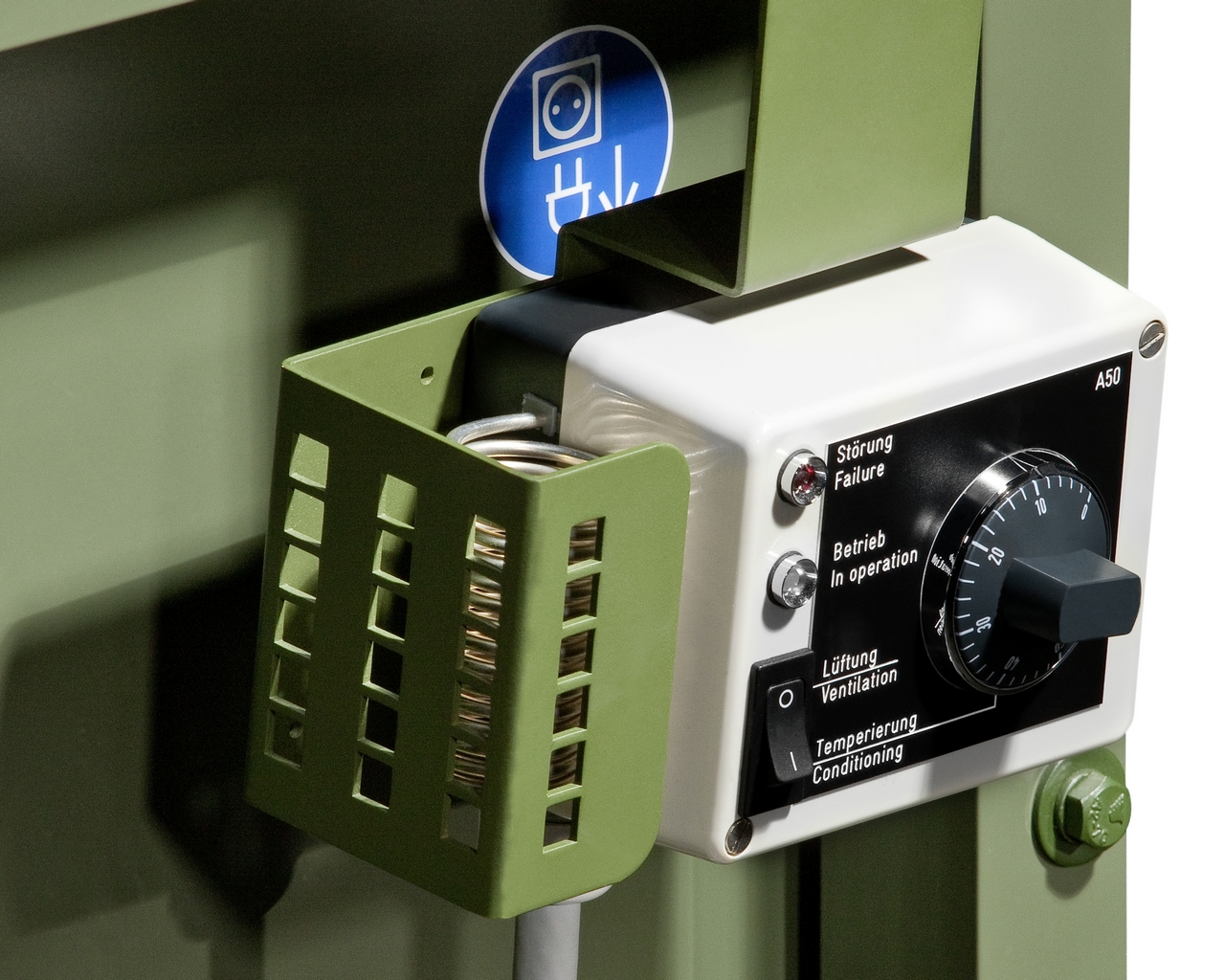

  • Control panel incl. thermostat

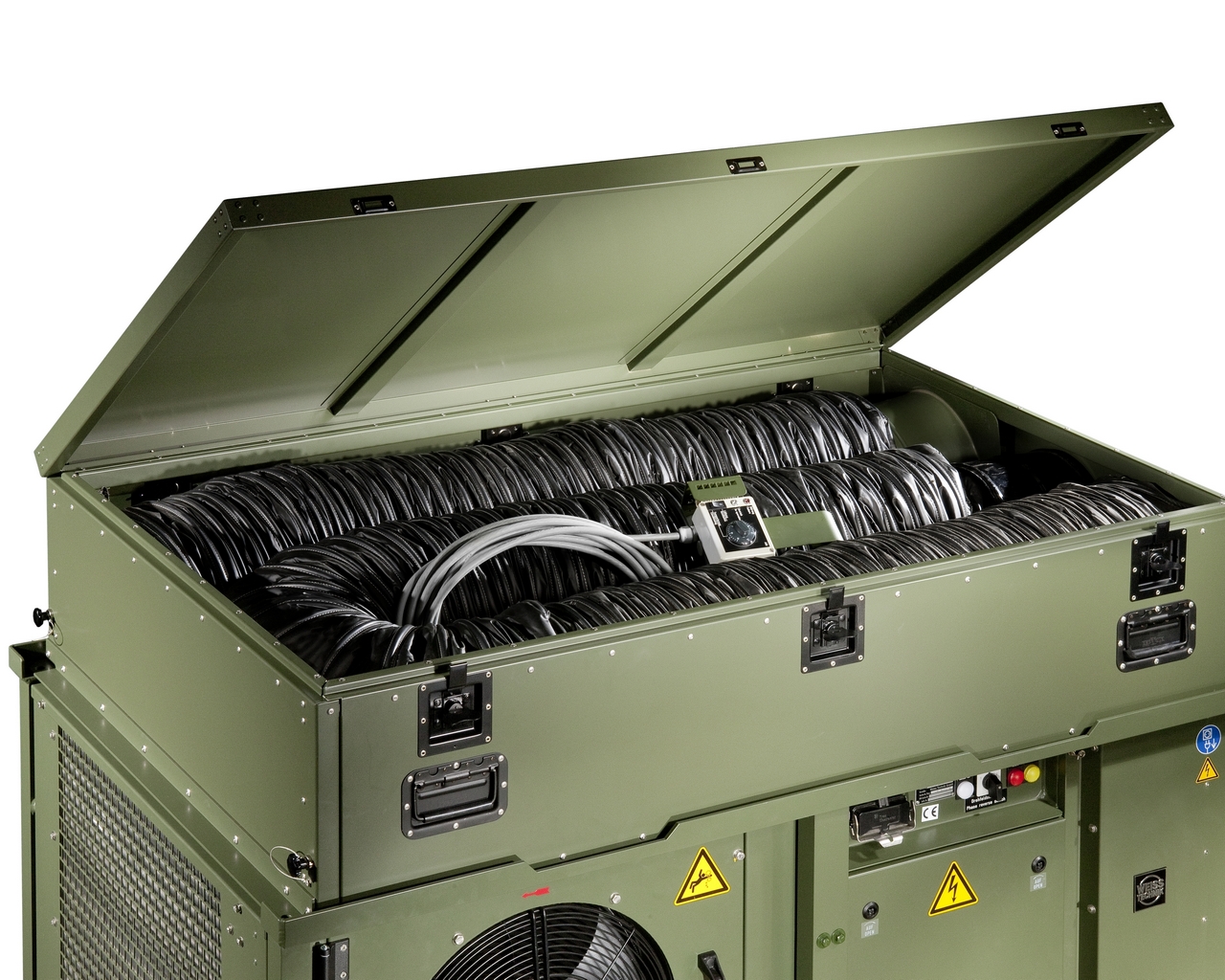

  • Multifunctional transport box
  • Air distribution system
  • F7 Filter inside basic unit
  • H13 Filter box
  • Soft starter for compressor
