Electronics

From servers to networking equipment to sub-assembly modules, electronics all have special testing needs to ensure maximum quality. Browse our electronics testing solutions below for more information on our various chamber applications.

For the heating of glass fiber strands prior to impregnation in liquid plastic and manufacture of glass fiber reinforced plastic granulate.
The Endurance® Series from Weiss Technik—the Fast Rate Temperature & Humidity chamber that stands alone. Designed and engineered to give you lasting value, performance and reliability for all your climate testing applications. The intelligent engineered test space design allows for maximum airflow coverage and accurate gradients. Many popular sizes available that allow you to choose the chamber that best fits your needs, while the mobile design allows for greater flexibility. Choose Ramp Rates of 3.0 C/min, 5.0 C/min, 10 C/min, and 15 C/min.
Available in both reach-in or cart-based versions, the ESS Series allows highly accelerated product temperature change rates through high air velocity conditioning. Weiss Technik has developed standard models that feature either our patented horizontal or vertical air flow, as different testing needs dictate that different temperature ranges, as well as change rate capabilities be readily available. Weiss Technik will equip your system with single-stage, cascade, twin-screw, LN2 boost, or LN2 cooled refrigeration systems, as well as the powerful Weiss Technik Controller/Programmer—all standard. By utilizing Quick Draw, we ensure that your product reaches set point as quickly as possible to reduce cycle times. Please review the product features below, as well as additional options and industry applications. Contact us for additional information or to request a quote.

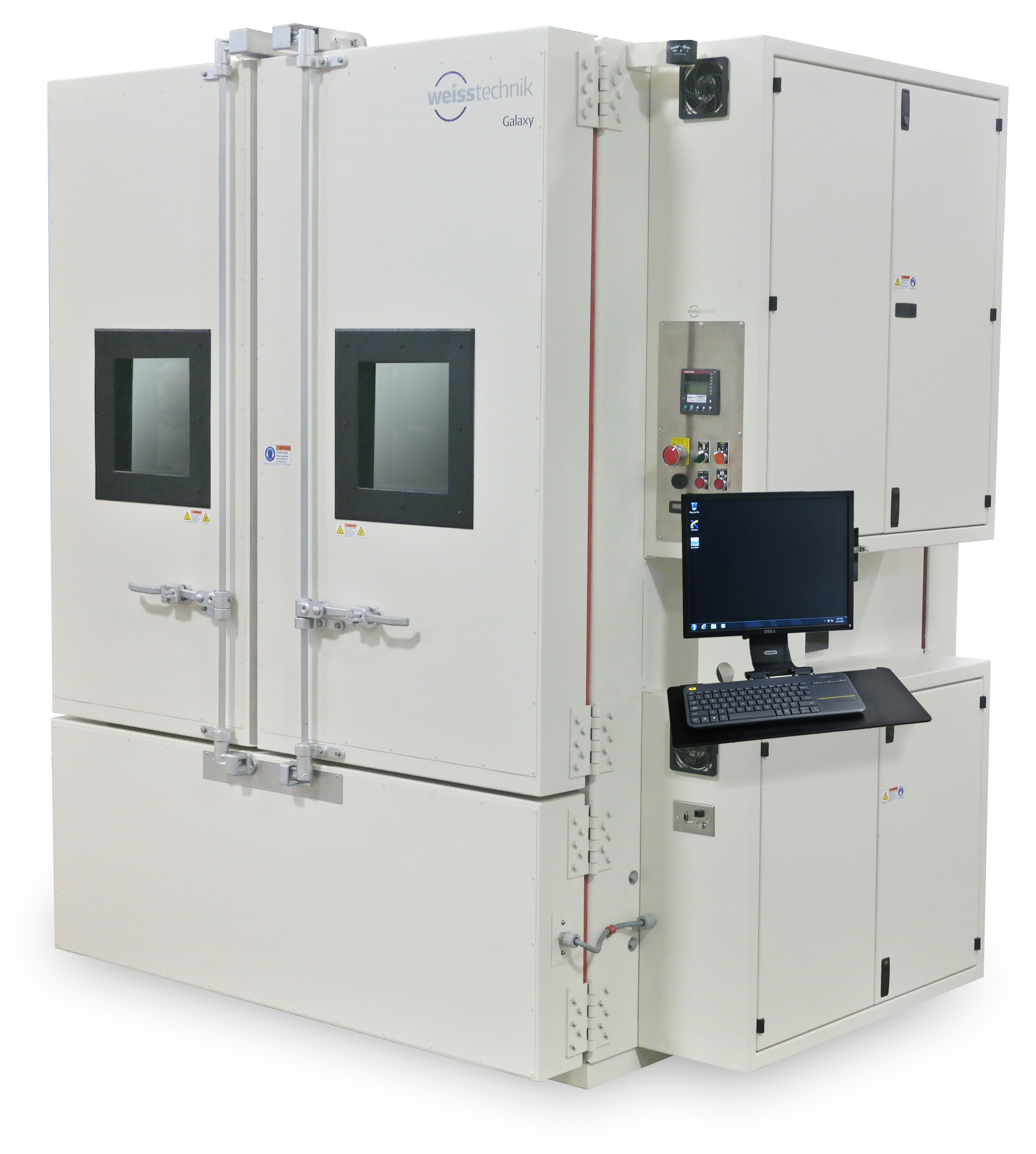

The Star Galaxy™ HALT/HASS systems are integrated test chamber/vibration table packages. These chambers are outfitted with a liquid nitrogen (LN2) cooling systems in order to provide the rapid thermal change rates required to achieve maximum product stress. The vibration table is a six degree-of-freedom (6DoF) tri-axial pneumatic vibration table.
The newly developed VHM HEPHAISTOS is an internationally patented system and characterized by a high field homogeneity. For the first time, the advantages of microwave technology have been developed successfully to an industrially mature high technology. The high field homogeneity allows for the manufacture of high-quality CFC aircraft structures, for instance.
  • Heating
  • Drying
  • Hardening

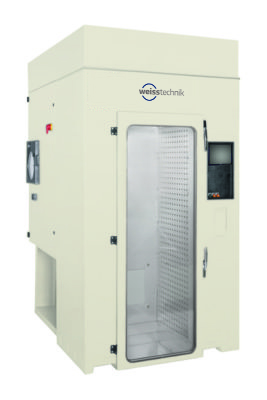

The ET27-1-10-WC-HAF test chamber was designed to maximize the testing capabilities for 19" rack mountable networking equipment. It was designed with right-to-left cross-chamber air flow to work with customer product by moving the air in the same direction as current customer-completed chassis designs. This helps to eliminate temperature gradients between upper and lower test tiers found in typical environmental chamber configurations. All chassis are exposed to identical temperature swings, changes, and ramp rates. Additionally, this system was designed with a single stage compressor system for ESS compatible product testing requirements between 0° and 50°C. The ET27-1-10-WC-HAF Test Chamber's small size provides a much more flexible system by allowing more rapid load turn times and less impact during chamber down time for preventive maintenance. The hole pattern in the side walls is characteristic of Techniks' patented high-velocity horizontal air flow system. All external connections typically found on other chamber designs such as water inlet/outlet and dry air purge systems have been moved inboard to protect them from accidental damage. Easy access for interconnect is provided through a 14" x 12" port which is conveniently located in the rear wall.
TWO ZONE, SINGLE CAPACITY (-2) (One hot zone & one cold zone) The products under test travel via a carrier basket, alternating between the hot and cold zones. TWO ZONE, DOUBLE CAPACITY (-2D) (Two hot zones & one cold zone) In the two zone, double capacity system, the cold zone is always in use, which contributes to the efficiency of the system. THREE ZONE, SINGLE CAPACITY (-3) (One hot zone, one ambient zone & one cold zone) In the horizontal three zone, the products travel via a carrier basket between the cold and ambient zones, and the hot zone travels to envelop the carrier basket.
TWO ZONE, SINGLE CAPACITY (-2) (One hot zone & one cold zone) The products under test travel via a vertical lift elevator, alternating between the hot and cold zones. TWO ZONE, DOUBLE CAPACITY (-2D) (Two hot zones & one cold zone) In the two zone, double capacity system, the cold zone is always in use, which contributes to the efficiency of the system.

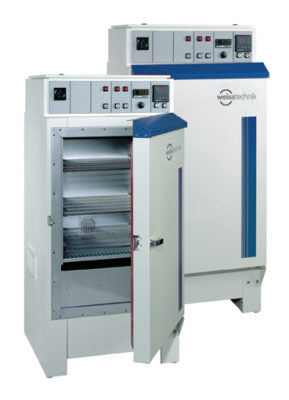

The TU 60/60 drying oven offers an unparalleled level of performance when compared to the classical laboratory equipment. The TU 60/60 offers easy loading and unloading, has a small design and short heating times thanks to high powered heaters, short drying cycles courtesy of an optimized air flow with extensive air exchange as well as offering precise and consistent temperature values throughout the entire machine.
For the hardening of carbon fiber molded parts

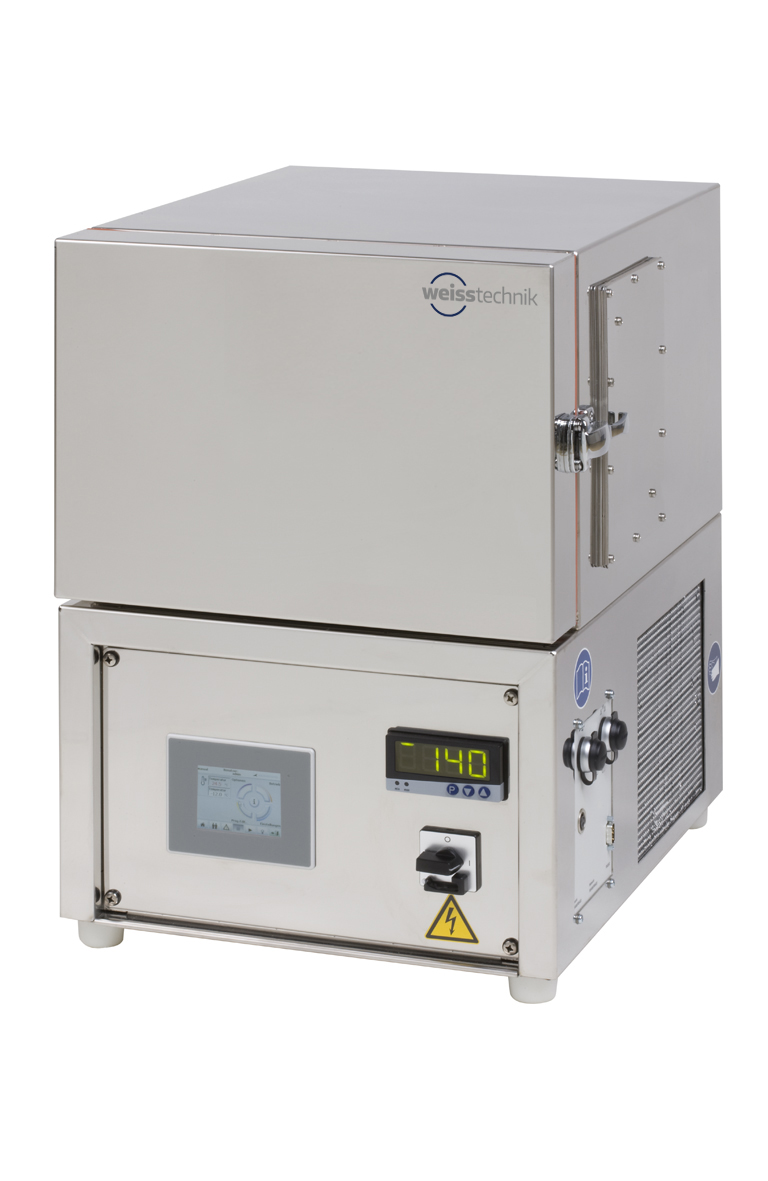

The VT 4002 EMC is a miniature temperature test chamber equipped with optimal shielding attenuation. The shielding attenuation was measured and certified by the Institute for Electric Energy Systems and High-Voltage Engineering (EH) of the University of Karlsruhe (TH). The test space is designed so that the interior container takes over a shield function.

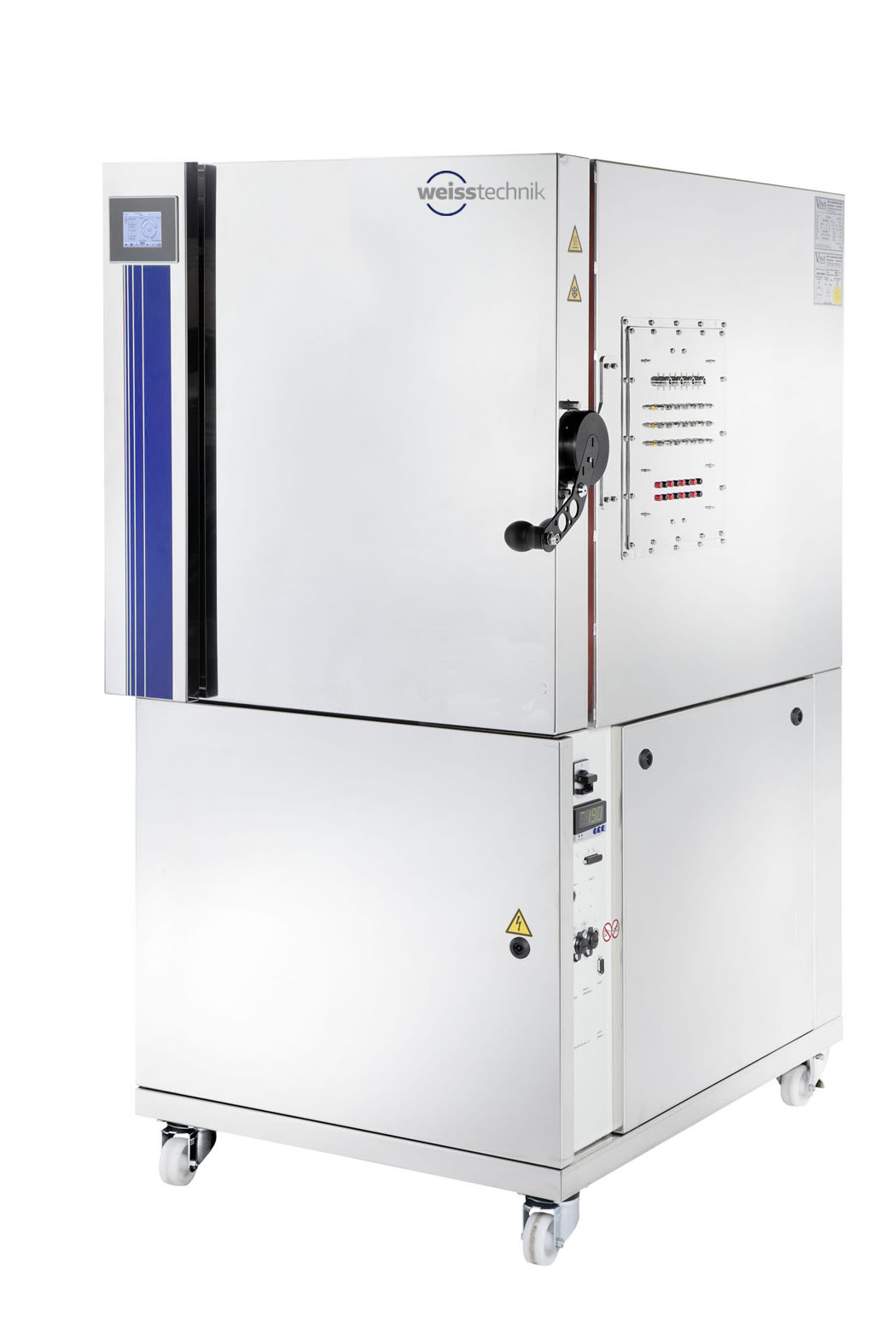

The temperature test cabinets series VT 4021 / 7021 EMC are equipped with optimal shielding attenuation with a test space volume of approx. 200 liters and a temperature range from -35 °C/-65 °C to 100 °C. The shielding attenuation was measured and certified by the Institute for Electric Energy Systems and High-Voltage Engineering (EH) of the University of Karlsruhe (TH).

The WT3-V/WK3-V Weiss Technik testing systems represent the broad performance range of our test systems. These test systems enable you to simulate dynamic processes, mechanical as well as thermal loads, which affect components and equipment. With a total of 36 test cabinets in 3 sizes with volumes of 600, 1200, and 2200 liters, and two temperature ranges from -40 and -70 to 180°C and temperature conditioning performances of 5, 10, and 15 K/min – both with and without climate conditioning.

The Xceed Custom Reach-In Series is the environmental test chamber from Weiss Technik that gives unlimited options. Designed, engineered, and built to your specifications the Xceed Series offers flexible temperature and humidity ranges, sizes that meet your exact testing requirement and available options that provide unmatched product testing applications.

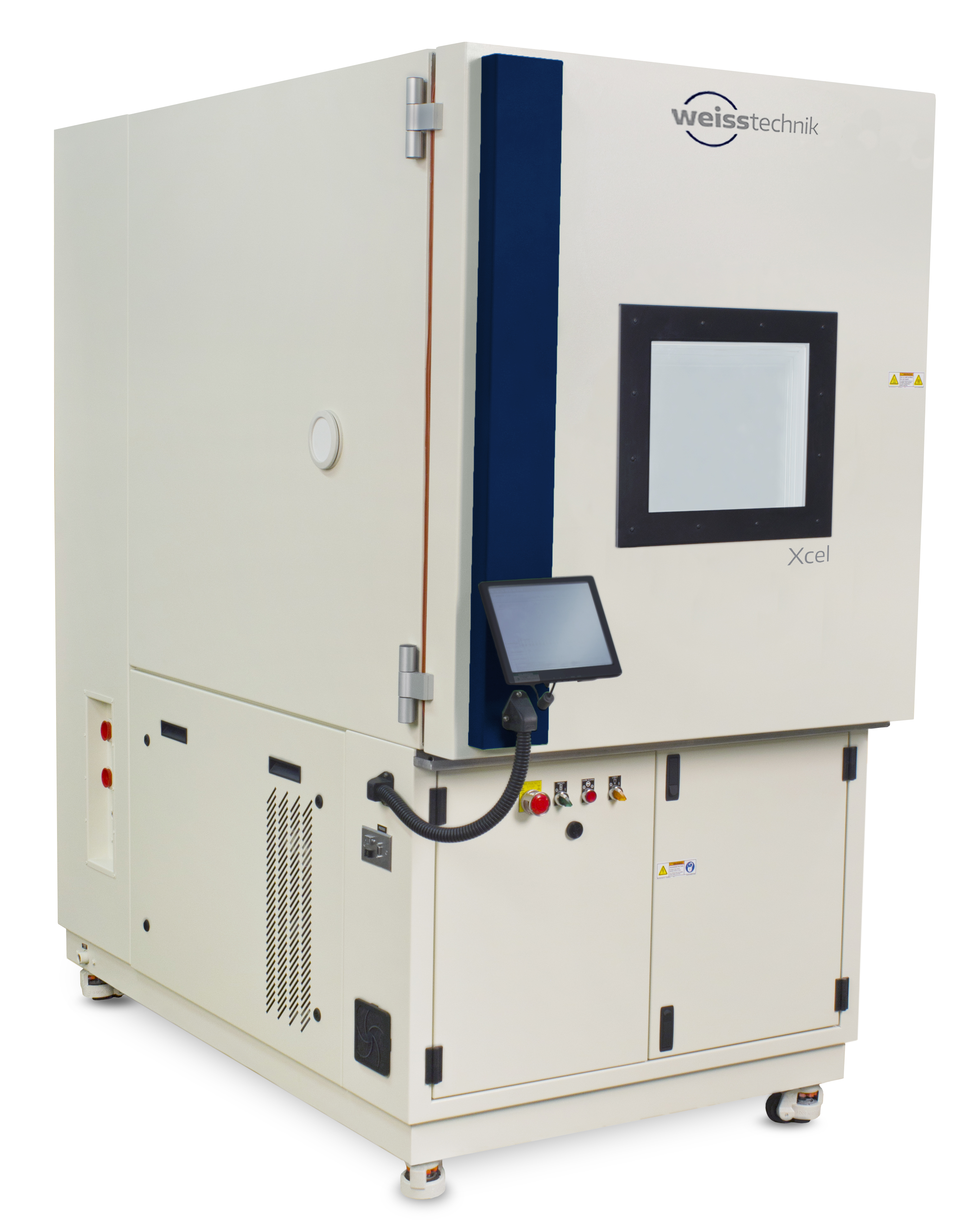

Xcel Converto from Weiss Technik the modular test chamber system with breakthrough patent pending technologies. Click on link below for Xcel Converto video:
  • Xcel Converto™ technology allows the user a modular, changeable, and expandable test chamber system resulting in reduced test set-up time, and greater flexibility for ever-changing test requirements.
  • LEEF™ (Leading Energy Efficiency Footprint) technology is a high-efficiency refrigeration system that provides unmatched performance; it features optimal temperature and humidity control accuracy for precise testing results, faster ramp rates, and up to 40% energy savings.
  • WEBSeason® is a precise user-friendly controller that offers real time multi-user multi-language programming and monitoring from any device from anywhere in the world simultaneously.
