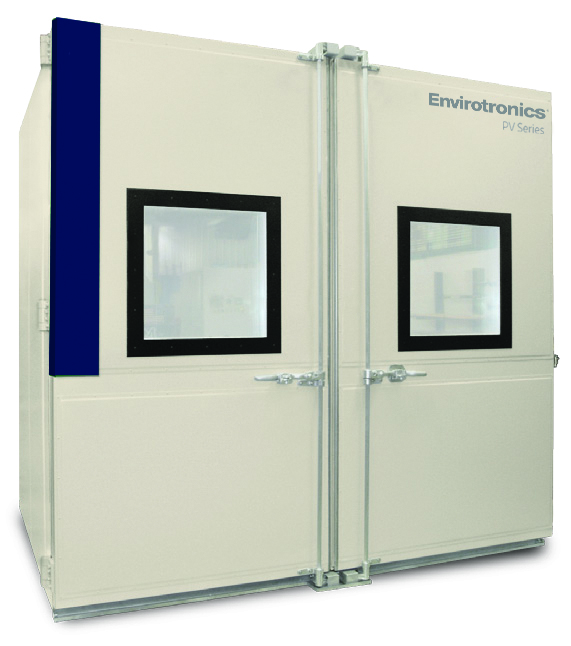

PV Series Solar Panel Test Chamber

Our Solar Panel Test chambers are used for testing photovoltaic modules (PV) under temperature and humidity extremes. Photovoltaic systems are used in various areas worldwide. To produce energy, PV modules are installed on the ground, on industrial buildings, in private households, charging stations, vehicles, planes, etc. It is important that these modules work perfectly under all environmental conditions. These test chambers are designed with an extra wide or high interior test space to accommodate various size panels.

These test chambers are designed to meet common solar panel test specifications for IEC 61713, 61215 and 61464 along with other UL and ASTM tests for temperature cycling test, damp heat test and humidity freeze tests.

  • Large number of small modules can be tested thanks to a wide test chamber
  • Suitable for large PV modules thanks to compact design
  • Large test chamber volume
  • LEEF™ (Leading Energy Efficiency Footprint) technology is a high-efficiency refrigeration system that provides unmatched performance; it features optimal temperature and humidity control accuracy for precise testing results, faster ramp rates, and up to 40% energy savings.
  • The innovative WEBSeason® user interface allows you to program, control and monitor your tests at any time and anywhere – even from your tablet or smartphone

Specifications

Temperature Range:
-73°C to +150°C

Humidity Range:
20% to 95%RH

Workspace Volume:
120, 140, 216, 326 cu. ft. (3398, 3965, 6116, 9175 Liters)

Custom sizes and configurations available.

Product Feature

  • Meets Industry Testing Standards: IEC, UL, GB and ASTM
  • Ability to reach a 95 C @ 95%RH. Allows for shorten test time
  • Easy access removable side panels
  • Full opening left-hand hinged door
  • Emergency stop push-button
  • (2) 4″ (102 mm) access ports
  • Interior light

Technical Data

PV Series chart_3.21.16

Additional Options

  • Many additional options available, contact your local salesperson for complete list
  • Custom sizes available consult with your local salesperson

Brochures

PV Series Brochure
