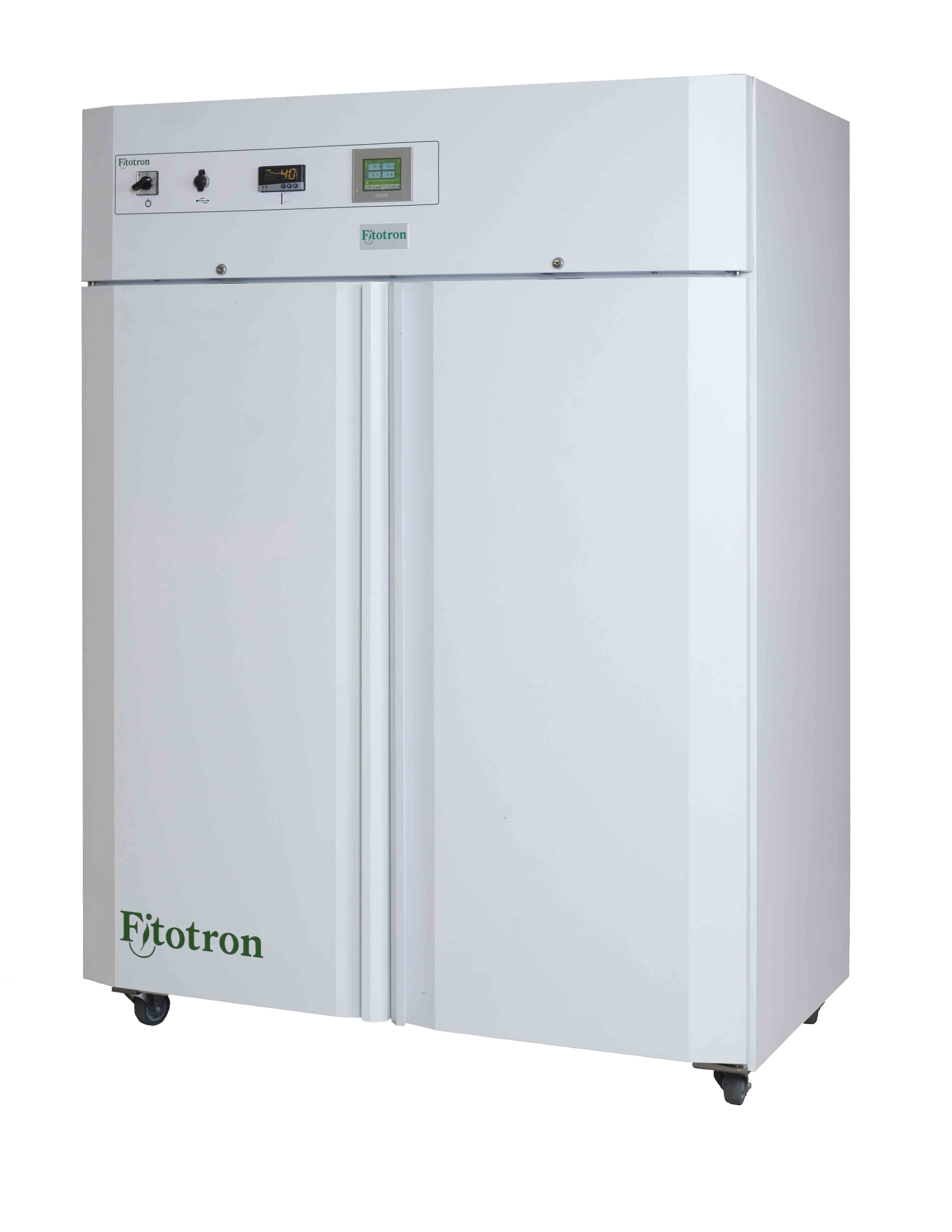

The new Fitotron® SGC 120 is centered on core attributes of versatility and user-friendliness. It is these features, combined with exceptional quality, that sets it apart from any other chamber of its type. The SGC 120 is available in a variety of guises and offers a host of shelving and lighting options enabling it to be utilised for a range of applications. The shelves can easily be added or removed by the user giving maximum flexibility and ease of use.
  • 6.8m2 shelf space
  • -2°C to +40°C
  • 10 wire shelves as standard
  • Minimal footprint size using less space
  • Cost-effective
  • User-friendly

Application

  • Biological storage
  • Incubation
  • Tissue storage
  • Media storage
  • Conditioning applications

Specifications

Chamber size
  • Internal: 1310mm (w) x 675mm (d) x 1410mm (h)
  • External: 1440mm (w) x 810mm (d) x 1975mm (h)
  • Volume: 1200 liters nominal
Temperature range
  • -2°C to +40°C
Temperature stability
  • +/-0.3°C
Humidity (optional)
  • 60%RH to 80%RH
Standard shelving (additional shelving available)
  • 5 levels of wire shelves

Shelving & lighting configurations

One shelf:
  • 12 x 36W fluorescent tubes per shelf
  • Max intensity approx. 620 µmol m-2 s-1 @ 150mm below tube @ 25°C
  • Max height between shelves 1275mm
Three shelves:
  • 4 x 36W fluorescent tubes per shelf
  • Max intensity approx 170 µmol m-2 s-1@ 150mm below tube @ 25°C
  • Max height between shelves 400mm
Four shelves:
  • 3 x 36W fluorescent tubes per shelf
  • Max intensity approx 140 µmol m-2 s-1@ 150mm below tube @ 25°C
  • Max height between shelves 250mm
Five shelves:
  • 2 x 36W fluorescent tubes per shelf
  • Max intensity approx 100 µmol m-2 s-1@ 150mm below tube @ 25°C
  • Max height between shelves 200mm
