Stability Test and Climate Cycling Chamber
Stability Test and Climate Cycling Chamber

Stability Test and Climate Cycling Chamber

The WK3-0 was designed for long term and accelerated stability tests, including ICH Q1A and ICH Q1B. It is capable of simulating the different climates and/or seasonal climates and the various climate zones of the world.

The components that have been exposed to a long-term test and/or and accelerated service life played a key role throughout the development and construction of the WK3-0.

  • Energy-saving climate conditioning systems
  • Maintenance-free temperature conditioning and humidification systems
  • Comprehensive documentation
  • Stability tests as per the ICH guideline, climate tests in which the climate remains constant as per DIN 50 014 and IEC 60 068-2-3 and additional test can be easily performed
  • Device can also be used as a temperature test cabinet
  • High versatility

Standard Version

  • Digital measuring and control system Simpac
  • 3.5“ TFT-color touch panel
  • Simpati program tool on CD-ROM for convenient programming of control via PC
  • Auto-adaptive control system
  • Ethernet and USB interface
  • Psychrometric humidity measurement with automatically wetted, self-cleaning sensor
  • Refrigeration unit, air-cooled
  • Ports Ø 50 mm and Ø 125 mm in the left and right side panel
  • Safety cut-out against high and low temperatures (protection of the test specimen) as per EN 60 519-2 adjustable, with separate sensor
  • Adjustable and vibration absorbing feet
  • Automatic water supply without interrupting operation
  • Calibration of 2 temperature values and 2 climate values
  • Large water container, easily accessible
  • Humidity bath flushing for cleaning of the humidifier water

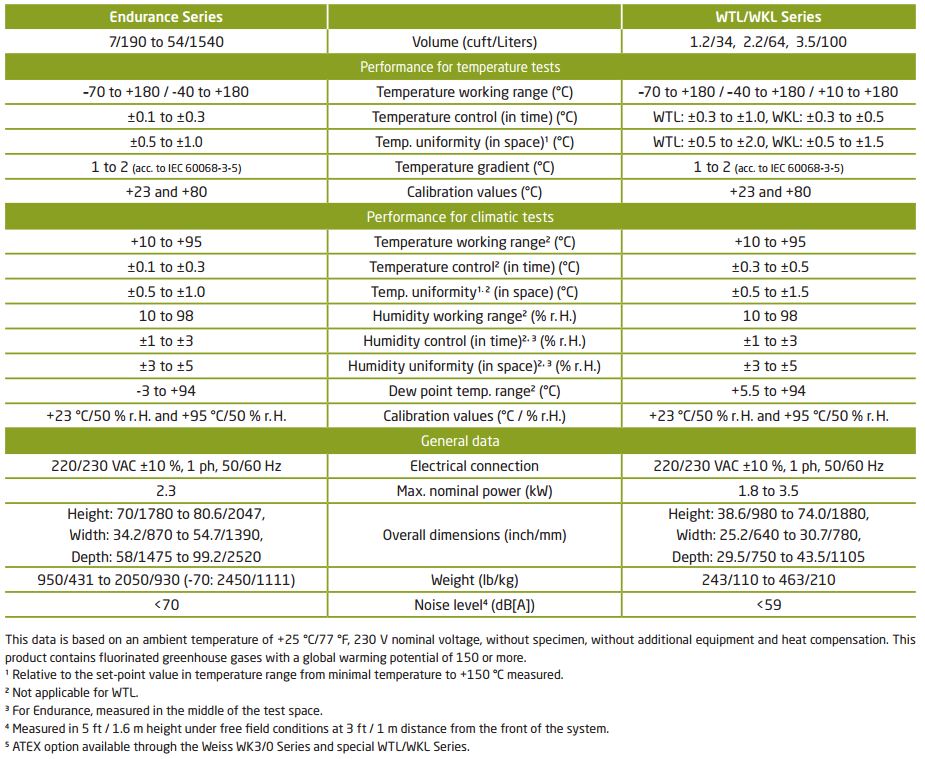

stability-test-and-climate-spec-sheet
  • Large observation window with lighting
  • Simpati software package for Windows
  • Mobile installation by means of moveable version
  • Additional shelves for optimum loading of test space
  • Drawer on telescopic rails
  • Temperature measurement on specimen
  • Compressed air drier
  • GN2/Compressed air connection
  • Additional ports 50, 80, 125 mm Ø
  • Other voltages and frequencies
  • Calibration in deviation to the standard
  • Annual calibration possible
  • Independent capacitive humidity sensor
  • Door hinged on right side
  • Qualification documentation
  • Silicone-reduced design
  • Further options / special accessories, tailor-made for your special requirements upon request
