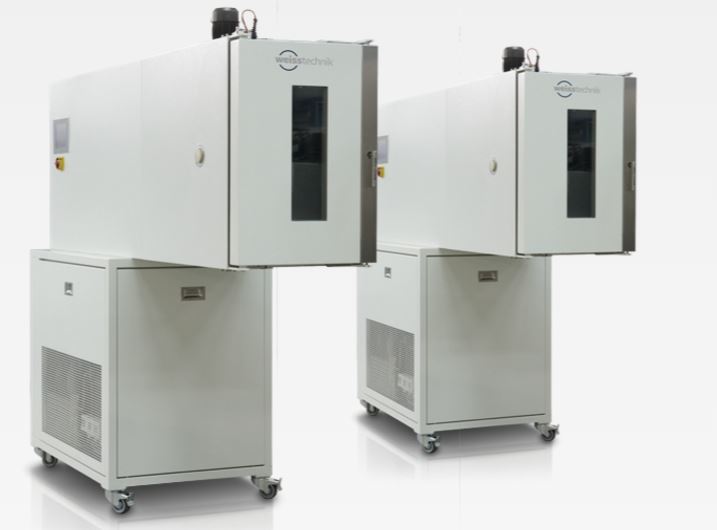

Tensile Test-Climate Chamber

Our Tensile Test Chambers interface with a tensile test rig. They provide temperature and humidity conditions with the tensile tester for fatigue testing with to determine its strength and deformation behavior until break occurs. The mounted wheels make is easy to extend into and retract from the test machine. Integration in existing rail systems is possible.

Humidification using an efficient system developed by Weiss Technik ensures precise control. Innovative humidification for tensile tests under extreme condition.

The innovative WEBSeason® user interface allows you to program, control and monitor your tests at any time and anywhere – even from your tablet or smartphone

Specifications

Temperature Ranges:
-30°C to +180°C
-70°C to +180°C

Humidity Range:
30% to 95%

Workspace Volume:
1 to 9 cu. ft. (25 to 260 Liters)

Models:

  • CE Model: Compact design with cooling system behind the test chamber
  • CC Model: versatile all-rounder on floor rails
  • CM Model: separate test chamber and machine room flexible cables
