CTAH – Combined Temperature Altitude Humidity Chamber 1m<sup>3</sup>
CTAH – Combined Temperature Altitude Humidity Chamber 1m<sup>3</sup>

CTAH – Combined Temperature Altitude Humidity Chamber 1m3

Climatic chamber 1m3 (35ft3) Hot Cold Vacuum Humidity

-65°C / +200°C

10 mbar (approx. altitude 85 kft)

Industries

Electronics, defense and aeronautics

Applications

Temperature, humidity and vacuum combined tests on electronics components powered with a voltage of less than 6000 volts

Description of the equipment

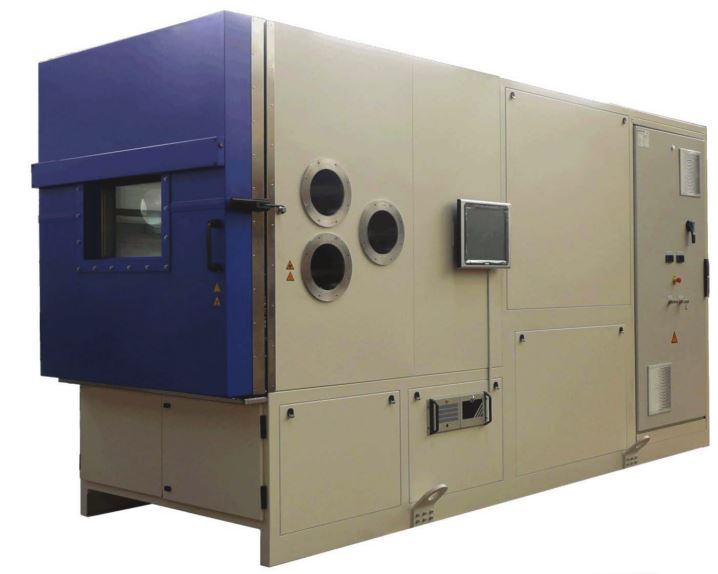

  • The test space with its conditioning unit at the back
  • The machinery on the rear side with its electrical cabinet
  • The control board in front of the electrical cabinet. Supervision and control using SPIRALE Vs software and command by touch screen
  • DUT heat dissipation : 2 kW at -30°C

Technical Data

Temperature-
  • Range :  -65°C to +200°C
  • Average cooling rate : 10°C/min from +175°C to -37°C (empty, down to 150 mbar [approx. altitude 44.3    kft])
  • Average heating rate : 10°C/min from -37°C to +175°C (empty, down to 150 mbar [approx. altitude 44.3    kft])
  • Temperature stability ≤ ± 0,5°C
  • Temperature homogeneity :  ± 2°C at 10 cm of the  walls
  • Temperature, humidity and vacuum combined tests on electronics components powered with a voltage of less than 6000 volts
Humidity-
  • Range of temperature : +10°C to    +95°C
  • Range of humidity: 10 to 98% RH, without dissipation, empty (pressure down to 150 mbar [approx. altitude
  • 44.3 kft], during 4h max)
  • Homogeneity : ± 3 %, at 10 cm of the walls
Vacuum- From AP to 10 mbar, regulated down to 50 mbar (approx. altitude 63.5 kft) In the range from 100°C down to -65°C Regulating accuracy : ± 1  mbar                   Dimensions-           CTAH – Combined Temperature Altitude Humidity Chamber Dimensions   CTAH – Combined Temperature Altitude Humidity Chamber
