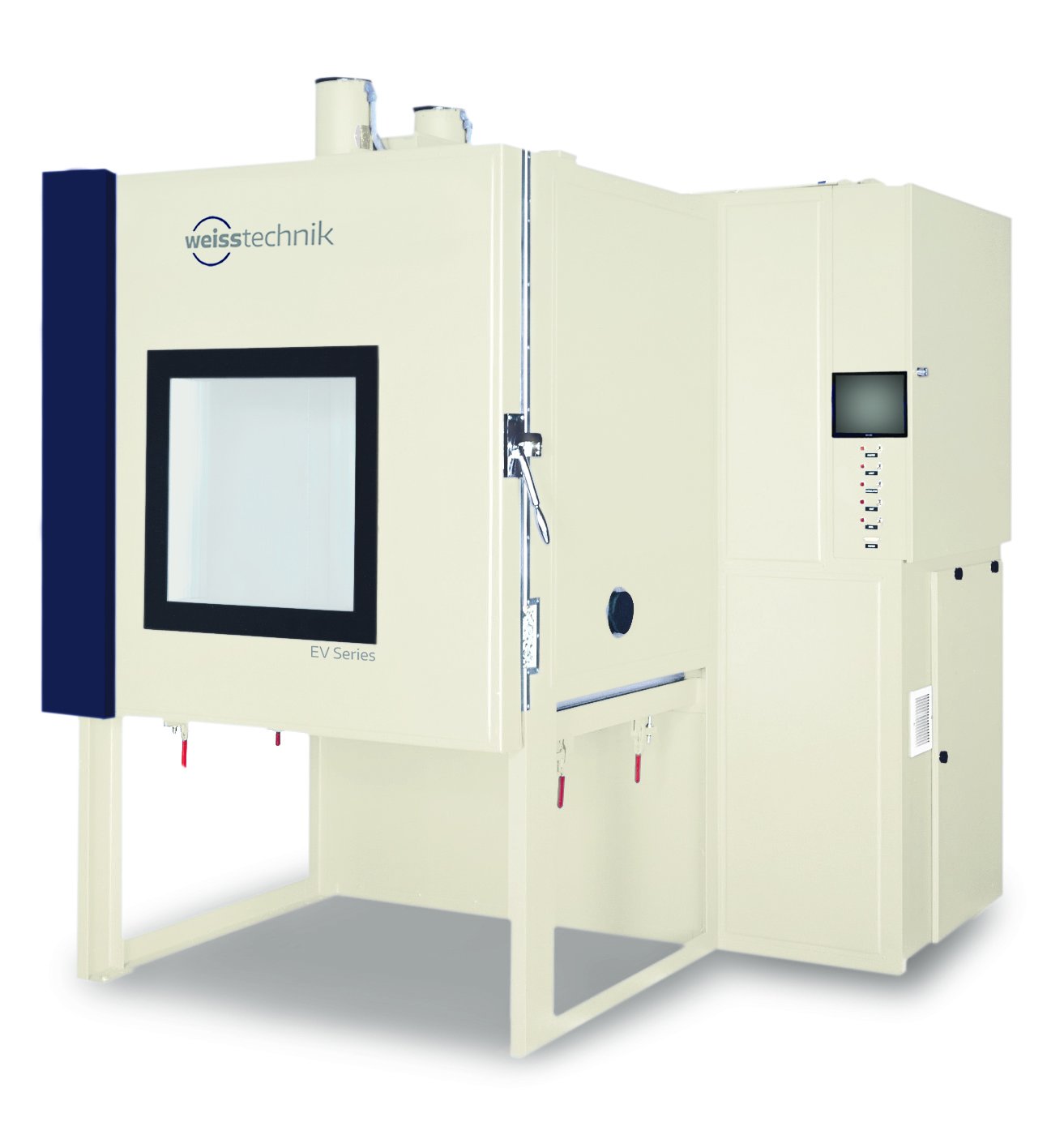

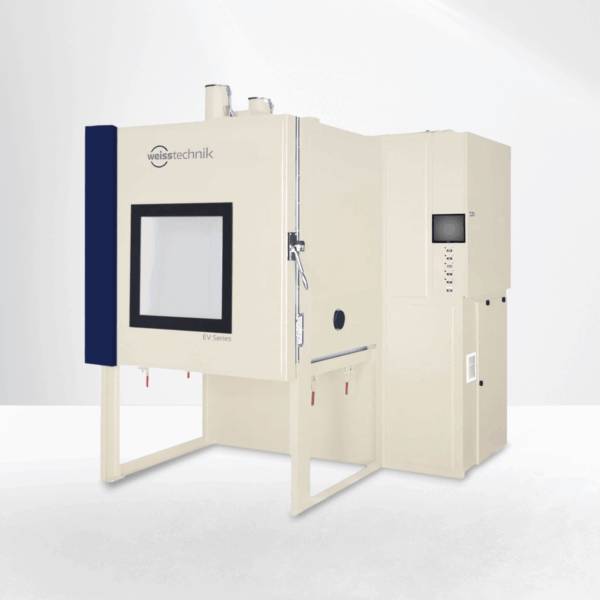

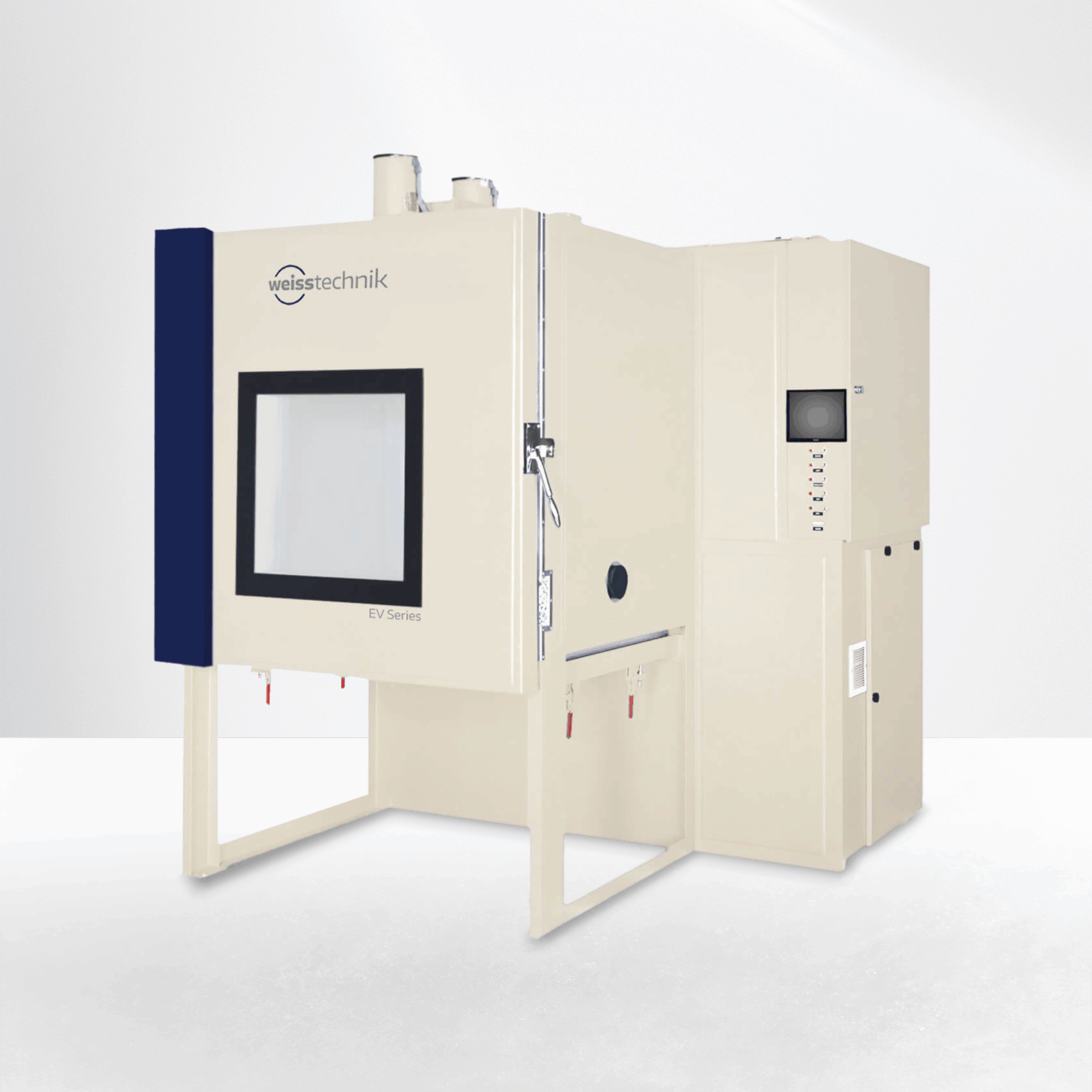

EV Series AGREE Vibration Test Chambers

The EV Series AGREE style chambers are offered in various sizes and accommodate electro-dynamic, mechanical vibration systems or roll-in product carts. The EV Series offers flexibility to be used as a test chamber with or without vibration tables.

  • Engineered to adapt to all vibration tables in the market
  • Dual door design available for easy loading/unloading
  • Gantry and Cantilever styles available for greater testing flexibility
  • Easy access side panels
  • Multiple door options available
  • LEEF™ (Leading Energy Efficiency Footprint) technology is a high-efficiency refrigeration system that provides unmatched performance; it features optimal temperature and humidity control accuracy for precise testing results, faster ramp rates, and up to 40% energy savings.
  • The innovative WEBSeason® user interface allows you to program, control and monitor your tests at any time and anywhere – even from your tablet or smartphone

Specifications

Model EV 50 EV 81 EVH 50 EVH 81
Test Space Volume
(Cu.Ft/Liters)
50/1415 81/2300 50/1415 81/2300
Temperature Range -73°C to +180°C
External Width 80″ (2032mm) 80″ (2032mm) 80″ (2032mm) 80″ (2032mm)
External Depth 102″ (2591mm) 112″ (2845mm) 117″ (2972mm) 132″ (3353mm)
External Height 110″ (2794mm) 114″ (2896mm) 95″ (2413mm) 99″ (2515mm)

Product Features

  • Engineered to adapt to all vibration tables in the market
  • Gantry and Cantilever styles available for greater testing flexibility
  • Dual door design available for easy loading/unloading
  • 400 MHz RISC CPU
  • 32MB Intel Strata Flash, 64MB RAM
  • Windows CE.NET 4.2
  • RS232 (built-in) 9-pin D-SUB
  • RS-485/422 (built-in) 25-pin D-SUB
  • Ethernet (built-in) 10/100Mbit RJ45/TP
  • USB Host for keyboard, mouse, printers, etc.
  • USB Device port for PC file transfer
  • Internal CF memory slot for memory expansion 32-1024MB
  • External CF data slot for data capture and extraction
  • 2-inch by 6-inch cable slot
  • 4-inch stainless steel access port with plug
  • Diaphragm and frame assembly, shaker to chamber interface
  • Dual air circulation system with solid stainless steel jack shafts
  • Nichrome wire heating elements with fail safe fusible link
  • Solid state heat switching
  • Adjustable door latch
  • LN2 cooling systems optional

    Refrigeration System:

  • Water-cooled cascade condenser
  • Copper tubing cooling coils with aluminum fins
  • High temperature slphosed or silver soldered joints
  • Semi-hermetic compressors
  • HFC refrigerants

Technical Data

Additional Options

  • Custom Sizes
  • Vertical Lift
  • Humidity
