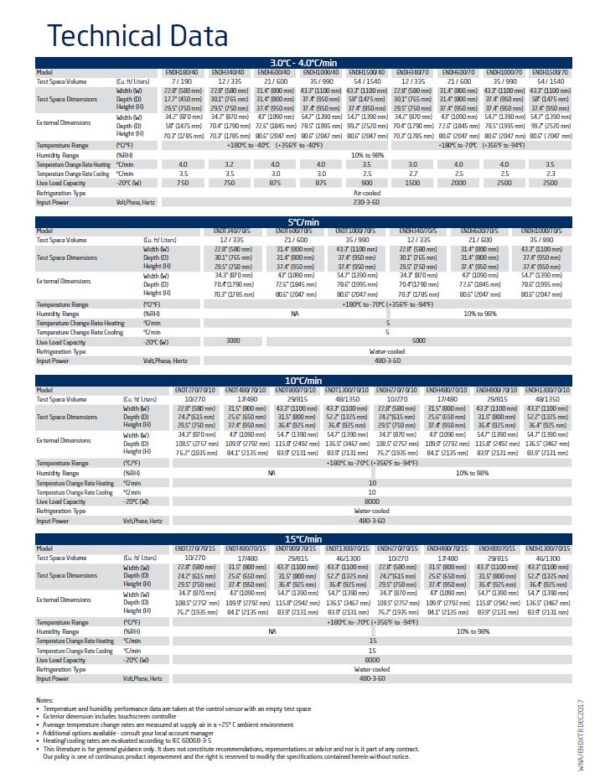

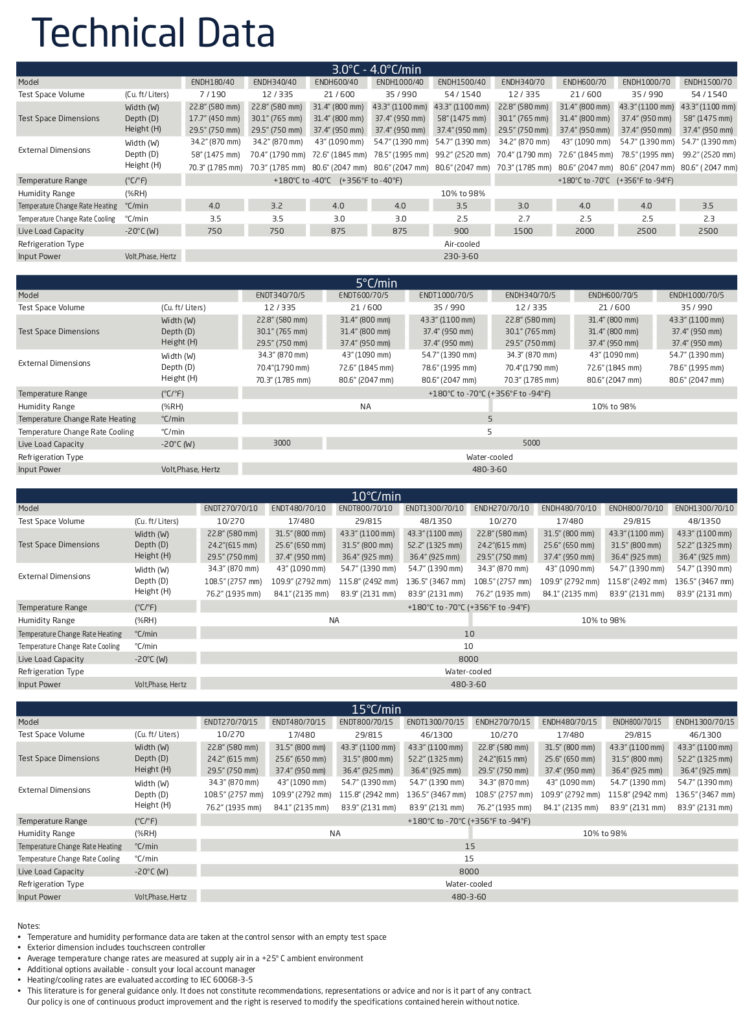

Specifications
| Refrigeration Type | Air-Cooled | Water-Cooled | ||||||||||
| Model | ENDH-7 | ENDH-12 | ENDH-21 | ENDH-35 | ENDH-54 | ENDH-12/70 | ENDH-21/70 | ENDH-35/70 | ||||
| Test Space Volume (Cu. Ft./Liters) |
7/195 | 12/335 | 21/610 | 35/990 | 54/1540 | 12/335 | 21/610 | 35/990 | ||||
| Heating Rate (°C/min) |
Up to 4 | Up to 3.2 | Up to 4 | Up to 4 | Up to 3.5 | Up to 5 | Up to 5 | Up to 5 | ||||
| Cooling Rate (°C/min) |
Up to 3.5 | Up to 3.5 | Up to 3 | Up to 3 | Up to 2.5 | Up to 5 | Up to 5 | Up to 5 | ||||
| Temp Range (°C[°F]) |
+180 to -40 (+356 to -40) |
+180 to -70 (+356 to -94) |
||||||||||
| Humidity Range | 10% to 98% | |||||||||||
| External Width (inches[mm]) |
36″ (915) |
36″ (915) |
44.8″ (1138) |
56.1″ (1425) |
56.1″ (1425) |
36″ (915) |
44.8″ (1138) |
56.1″ (1425) |
||||
| External Depth (inches[mm]) |
59.7″ (1516) |
65.3″ (1660) |
66.7″ (1695) |
72.7″ (1847) |
93.4″ (2372) |
65.3″ (1660) |
66.7″ (1695) |
72.7″ (1847) |
||||
| External Height (inches[mm]) |
78.8″ (2002) |
78.8″ (2002) |
86.7″ (2202) |
86.7″ (2202) |
86.7″ (2202) |
78.8″ (2002) |
86.7″ (2202) |
86.7″ (2202) |
||||
