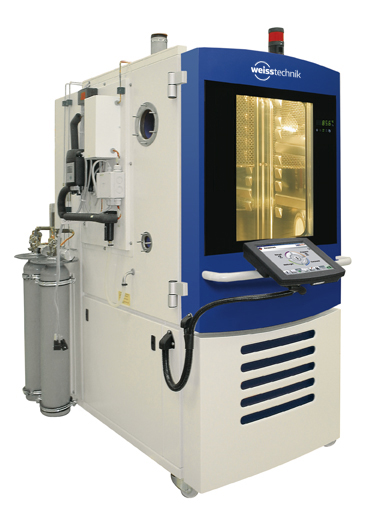

Reach-In Battery Test Chambers

Our Reach-In Battery Test Chambers are expertly designed for testing battery cells and modules, providing an optimal solution for evaluating lithium batteries under various conditions.   Available in sizes from 7 to 54 cubic feet (190 to 1540 liters), these temperature test chambers can be equipped with or without humidity control. They simulate extreme conditions, including low and high temperatures, rapid temperature changes, and humidity fluctuations, essential for assessing battery reliability.

Safety is our top priority, especially during tests where overcharging or malfunctions can lead to battery failure. As storage sizes increase, the potential for risks also rises, making robust safety features crucial. Weiss Technik is the global leader in battery testing solutions, committed to safety and reliability. We specialize in developing state-of-the-art test chambers tailored to your specific needs, ensuring both effective testing outcomes and protection for laboratory personnel. Choose our Battery Test Chambers for a safe and efficient solution to your battery testing requirements.

Why Choose Reach-In Battery Test Chambers?

  • Integrated battery safety features meet the needs for testing batteries with different chemistries and hazard levels.
  • Designed to meet UL, IEC, USCAR, EUCAR, IEEE and SAE testing standards for battery testing.
  • The innovative WEBSeason® user interface offers simple programming and allows you to control and monitor your tests anytime, anywhere, from any device.

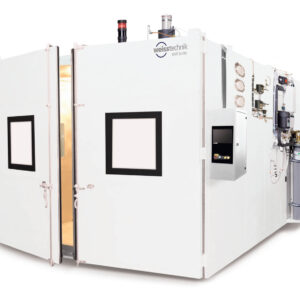

  • Need a larger size Battery Test Chamber? Our Vibration Test chambers and  Walk In & Drive In Battery Test Chambers may also be designed to accommodate large EV packs.

Specifications

Our test chambers are designed to meet a variety of test standards for safe and reliable testing. To assure this safety in your laboratory during tests with lithium batteries in a temperature- or humidity test chamber, we offer safety features, which are adjusted to the specific EUCAR Hazard Level. Of course, the safety equipment can be adapted individually, according to customer specifications. Please contact us for more detailed information.

Hazard Severity Level Description Classification Criteria and Effect
0 No Effect No effect. No loss of functionality
1 Passive Protection Activated No defect; no leakage; no venting, fire, or flame; no rupture; no explosion; no exothermic reaction or thermal runaway. Cell reversibly damaged. Repair of protection device needed.
2 Defect/Damage No leakage; no venting, fire, or flame; no rupture; no explosion; no exothermic reaction or thermal runaway. Cell irreversibly damaged. Repair needed.
3 Minor Leakage No venting, fire, or flame*; no rupture; no explosion. Weight loss
4 Major Leakage/ Venting No fire or flame; no rupture; no explosion. Weight loss ≥50% of electrolyte weight (electrolyte = solvent + salt).
5 Fire or Flame No rupture; no explosion (i.e., no flying parts).
6 Rupture No explosion, but flying parts of the active mass
7 Explosion Explosion (i.e., disintegration of the cell).





Safety in the laboratory and protection of the staff

During the temperature tests, overchargings or malfunctions of the batteries may occur. This can lead to the destruction of the batteries.

Increasing storage sizes cause increasing impacts of possible failures and potential risks during tests with lithium batteries. For this reason, safety in the laboratory, in particular the protection of the staff, during such tests has the highest priority.

To assure this safety in your laboratory during tests with lithium batteries in a temperature- or climatic test chamber, we can offer safety devices, which are adjusted to the EUCAR Hazard Level at an optimum. Of course, the safety equipment can be adapted individually, according to customer specifications. Please contact us for more detailed information

VIT Lithium Safety Options

Additional Options

Weiss Technik has extensive experience in battery testing solutions including safety equipment. Special add-on components can be supplemented for testing lithium-ion batteries tailored to the different hazard levels (0 … 7).

  • Electrical door lock system
  • Optic and acoustic alarm
  • Pressure release flap
  • N2 – Inertia Unit
  • O2 – Measuring (additional option for N2 – Inertia)
  • Fire detection system using a CO gas detection sensor
  • Fire detection via temperature measurement (alternative)
  • Flushing device using in case of fire
  • Over pressure release via burst disc including reinforced inner container
