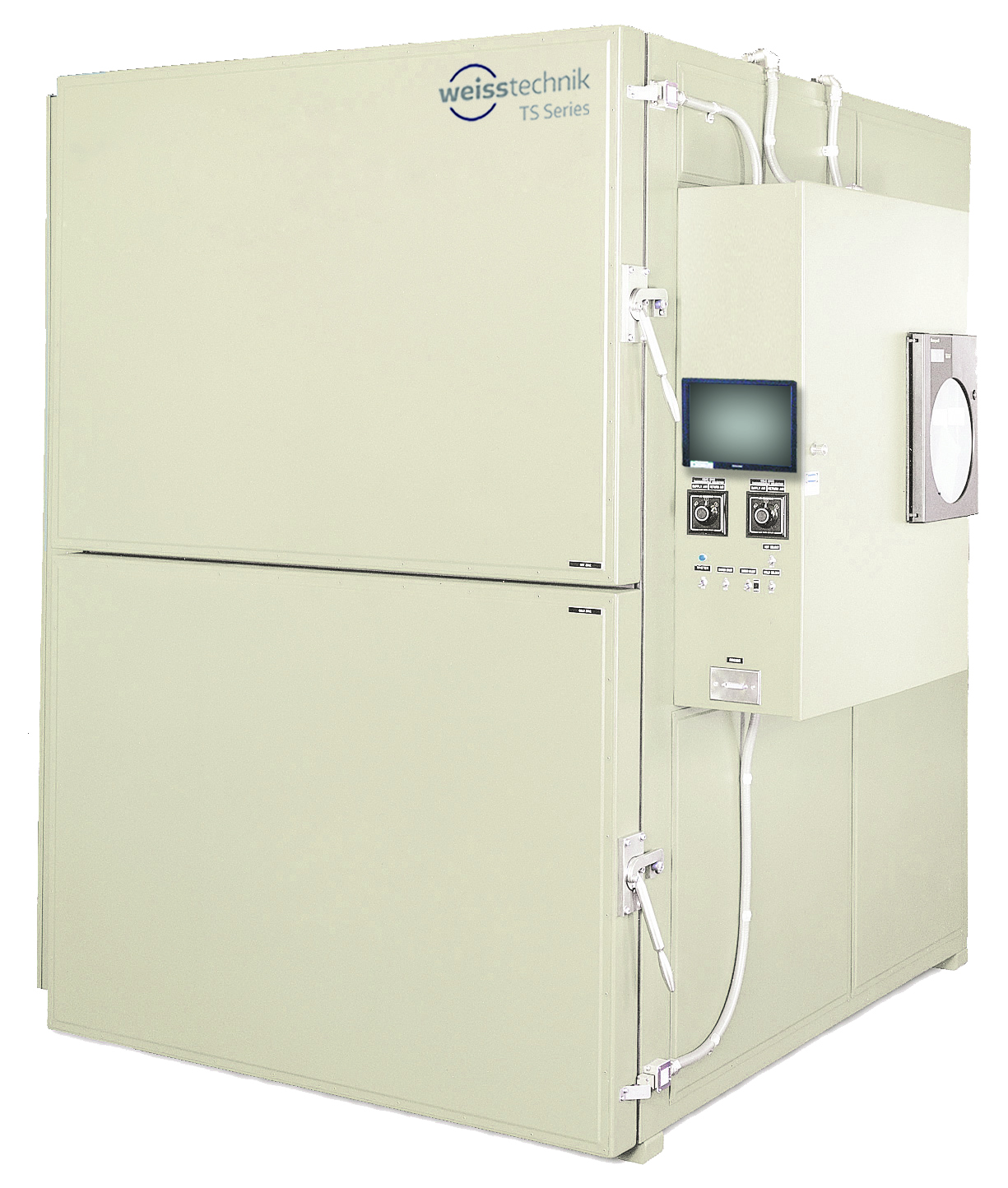

TS Series Vertical Thermal Shock Test Chamber

The TS-series large vertical thermal shock chamber is ideal for testing large products or batches of products. The products under test travel via a vertical lift elevator, alternating between the hot and cold zones for rapid product temperature changes.  Guaranteed part temperature recovery/soak monitors the worst-case part thermocouple and allows transfer only when the set-point temperature has been reached.  Thermal shock chambers meet Mil-Std 883 and other commercial test standards.

  • Space saving design allows for small lab use
  • Many Safety features (see Products Features TAB)
  • The innovative WEBSeason® user interface allows you to program, control and monitor your tests at anytime and anywhere – even from your tablet or smartphone.

Specifications

Model TSV 11
Test Space Volume
(Cu.Ft/Liters)
11/312
Temperature Range -73°C to +200°C
External Width 87″ (2210mm)
External Depth 86″ (2184mm)
External Height 94″ (2388mm)

Product Features

  • Guaranteed part temperature recovery/soak monitors the worst case part thermocouple and allows transfer only when the set-point temperature has been reached.
  • Thermal heat sinks in each zone for peak demand of heating and cooling.
  • Provides extra thermal energy to efficiently meet the MIL-STD 833H requirements.
  • Supply/return air control selection switch
  • Environmentally correct refrigerants are used that are ozone free and met all current regulatory requirements.

Safety:

  • Electrically interlocking chamber doors and equipment section doors
  • Electromechanical carrier lock-out
  • Transfer alarm/jam alarm
  • Factory set over temperature controls
  • Basket automatically stops when door are opened
  • Emergency Off Button
  • Over temperature protection (hot zone)
  • Door safety limit switches
  • GN2 purge in cold zone minimizes build-up of frost on the cold zone coils, which extends the number of cycles which can be performed between defrosting.

Additional Options

  • Dry air purge can be used when no GN2 is available at site.
  • Semi-automatic defrost system monitors the cold zone and alerts the operators when defrosting is needed. When activated, the system goes through a complete defrost cycle and re-starts the cold zone. Can run up to 1,000 cycles before defrosting may be needed.
  • LN2 boost/backup system to assist the mechanical cooling system where loads exceed system ratings or where there is a shutdown of the mechanical cooling and LN2 is used for temporary operation.
  • Noise reduction package provides sound insulation for the equipment section. Can reduce sound levels to 75 dBa
  • Precision over temperature and under temperature controls provide
  • Factory Mutual (FM) user-set control to protect the products under test.
  • Air-cooled condenser available where cooling water is not accessible for system operation.
  • Remotely located equipment packages are available. Consult the factory for configurations and specifications.
  • Custom sizes available consult with your local salesperson
  • Many options available – contact your local salesperson for complete list
